PID1500 1.5 A Temperature Controller

Out of stock

CONTACT FOR QUOTE

PID1500 1.5 A Temperature Controller

  • Plug-and-play packaging
  • All controls and heatsink integrated
  • Single Supply Operation: +5 V to +12 V
  • Drive ±1.5A of TEC or RH current
  • Package: 1.1" x 2.65" x 1.52"
  • Heat and cool current limits
  • Linear Stability: 0.003°C
  • Supports Thermistors, RTDs, IC sensors
  • 14 pin SIP PCB mount
  • Monitor Actual and Setpoint Temperatures

Out of stock

CONTACT FOR QUOTE

PID1500 1.5 A Temperature Controller

  • Plug-and-play packaging
  • All controls and heatsink integrated
  • Single Supply Operation: +5 V to +12 V
  • Drive ±1.5A of TEC or RH current
  • Package: 1.1" x 2.65" x 1.52"
  • Heat and cool current limits
  • Linear Stability: 0.003°C
  • Supports Thermistors, RTDs, IC sensors
  • 14 pin SIP PCB mount
  • Monitor Actual and Setpoint Temperatures
  • 1 - 5 each
    $240.00
  • 6 - 14 each
    $240.00
    $216.00
  • 15 - 24 each
    $240.00
    $204.00
  • 25+ each
    $240.00
    $192.00

Out of stock

CONTACT FOR QUOTE

Contact Factory for High Volume Pricing
Price adjustments will be reflected in the cart. For availability information please contact us.

All prices are in US dollars. Prices do not include shipping charges. All prices will be confirmed at time of shipment and may include pass-through tariff estimates.

If ordering from or shipping to Australia, China, or Hong Kong, please contact your distributor.

The robust circuitry of the PID1500 achieves 0.003°C temperature stability. Onboard controls make this package plug and play. The linear, PI control loop offers maximum stability while the bipolar current source has been designed for higher efficiency. The PID1500 drives up to 1.5 A for either Thermoelectrics (bipolar) or Resistive Heaters (unipolar). An evaluation board simplifies prototyping: PIDEVAL. Heatsinking is already provided to support operation across a -20°C to +85°C operating range. The PID1500 temperature controller is easily configured for any design. Virtually any type of temperature sensor can be used with the PID1500 and a built in switchable sensor bias current source simplifies use with resistive temperature sensors. The Proportional Gain (P) is adjustable with an onboard single turn trimpot. Use an onboard trimpot to adjust the setpoint or the Analog Input pin for remote control. Use another onboard trimpot to set the maximum output current to the load or set it with a resistor between pins 1 & 2. A switch between those pins acts as a remote enable / disable. Remove a jumper to operate resistive heaters with a unipolar output current. Two monitor pins provide access to the temperature setpoint voltage and the actual sensor voltage. The PID1500 has proven reliable in such diverse fields as spectroscopy, defense, and medical research. Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. The standard product can be easily modified to meet your application requirements.

Supply Range: 5 – 12 V
Temperature Control Output Current: up to ±1.5 A
Temperature Stability: 0.003°C (10 kΩ thermistor at 25°C) over one hour
Setpoint vs. Actual Temperature Accuracy: 1% typical

Features:
-PI controller minimizes overshoot and time to temperature
-Compatible with multiple sensors
-Adjustable sensor bias current optimizes sensor feedback voltage
-Can operate with unipolar current for Resistive Heaters

Maximum Power Dissipation: 9 W

14 pin SIP PCB Mount size: 28 x 67 x 39 mm

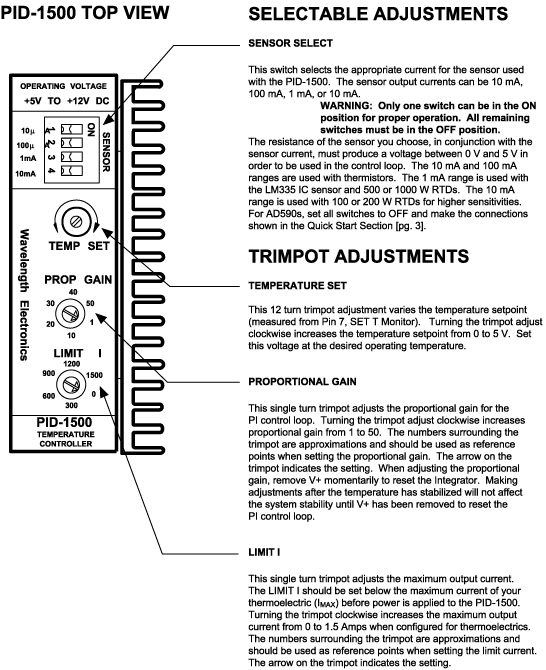

PID1500

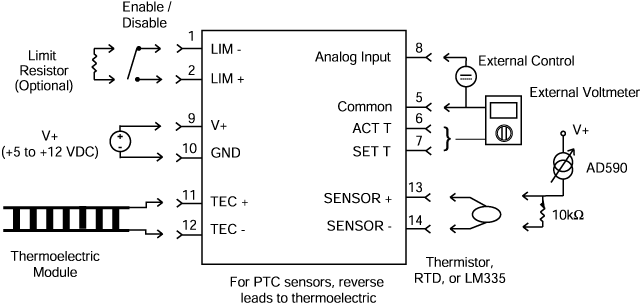

Connection Diagram PID1500 Temperature Controller

PID1500
