Evaluation PCB for the PID-1500
CAN BE USED WITH
1 - 5 each
$188.00
-
1 - 5 each$188.00
-
6+ each
$188.00$184.00
Out of stock
CONTACT FOR QUOTE
Contact Factory for High Volume Pricing
Price adjustments will be reflected in the cart. For availability information please contact us.
All prices are in US dollars. Prices do not include shipping charges. All prices will be confirmed at time of shipment and may include pass-through tariff estimates.
If ordering from or shipping to Australia, China, or Hong Kong, please contact your distributor.
Use the PIDEVAL Evaluation Board to rapidly prototype a complete temperature control system using the PID1500.
Onboard switches, connectors, and trimpots make configuration and operation simple. The PID-1500 Temperature Controller is not included.
DVM cable ready test points monitor the setpoint and actual temperature. There is a main power switch with LED indicator. Another switch enables or disables output current. Power and load connections, inputs and monitors are on a terminal strip. A 2.5 mm jack is compatible with the power supplies: PWRPAK-5V (up to 6 A), PWRPAK-7V (up to 2.8 A), PWRPAK-9V (up to 3 A), or PWRPAK-12V (up to 2.5 A).
Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.
Size: 2.4 x 4.4 x 1.8″ (with PID1500 installed)
61 x 112 x 46 mm

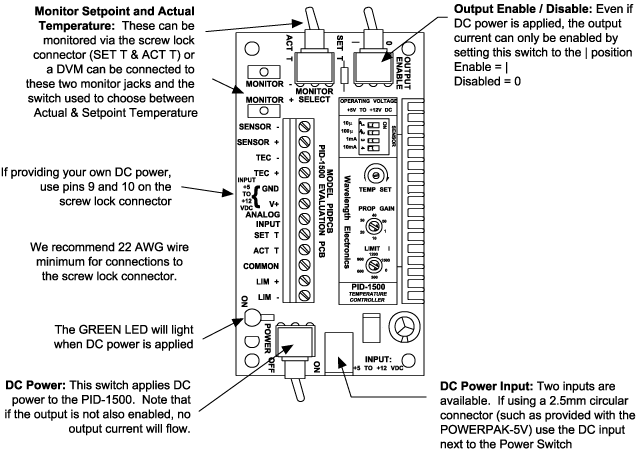

Top View of PIDEVAL
DATASHEETS
RELATED PARTS
| SKU | DESCRIPTION | PRICE | IMAGE |
| PID1500 | PID1500 1.5 A Temperature Controller |
$240.00 You save (%) |
 |
| PWRPAK-12V | Switching Power Supply 2.5 A, 12 V |
$161.00 You save (%) |
 |
| PWRPAK-5V | Switching Power Supply 6 A, 5 V | $161.00 |  |
| PWRPAK-7V | Switching Power Supply 3 A, 7.2 V |
$161.00 You save (%) |
 |
| PWRPAK-9V | Switching Power Supply 3 A, 9 V |
$161.00 You save (%) |
 |
| TCS10K5 | TCS10K5 10 kΩ Thermistor (0.5x3mm) Sold in 5-packs |
$99.00 You save (%) |
 |
| TCS610 | TCS610 10 kΩ Thermistor (2x3mm) Sold in 10-packs |
$99.00 You save (%) |
 |
| TCS620 | TCS620 20 kΩ Thermistor (2x3mm) Sold in 10-packs |
$99.00 You save (%) |
|
| TCS650 | TCS650 50 kΩ Thermistor (2x3mm) Sold in 10-packs |
$99.00 You save (%) |
|
| TCS651 | TCS651 100 kΩ Thermistor (2x3mm) Sold in 10-packs |
$99.00 You save (%) |
|
