TCS10K5 10 kΩ Thermistor (0.5x3mm) Sold in 5-packs
CAN BE USED WITH
- HTC1500 1.5 A Low Profile OEM Temperature Controller
- HTC1500-62 1.5 Amp Low Profile OEM Temperature Controller
- HTC3000 3 A Low Profile OEM Temperature Controller
- HTC3000-62 3 A Low Profile OEM Temperature Controller
- HTC4000-62 4 A Low Profile OEM Temperature Controller
- LDTC Series 500 mA Laser Driver & Thermal Control
- LDTC Series 1 A Laser Driver & Thermal Control
- LDTC Series 2.2 A Laser Driver & Thermal Control
- LDTC Series 2.2 A Laser Driver & Thermal Control
- MPT2500 2.5 A Temperature Controller
- MPT5000 5 A Temperature Controller
- MPT10000 10 A Temperature Controller
- PID1500 1.5 A Temperature Controller
- PTC5000 5 A PCB-Mount Temperature Controller
- PTC10000 10 A PCB-Mount Temperature Controller
- PTC2.5K-CH 2.5 A Temperature Controller, Chassis Mount
- PTC5K-CH 5 A Temperature Controller, Chassis Mount
- PTC10K-CH 10 A Temperature Controller, Chassis Mount
- RHM5K-CH 5 A Unipolar Chassis Mount Temperature Controller
- WHY5640 2.2 A Temperature Controller
- WTC3243 2.2 A Temperature Controller
- WTC3243HB 2.2 A Li+ Battery Temperature Controller
- WTCP 5 A, 5 V PWM Temperature Controller
1 - 5 each
$99.00
-
1 - 5 each$99.00
-
6 - 14 each
$99.00$92.00 -
15 - 24 each
$99.00$90.00 -
25+ each
$99.00$88.00
Contact Factory for High Volume Pricing
Price adjustments will be reflected in the cart. For availability information please contact us.
All prices are in US dollars. Prices do not include shipping charges. All prices will be confirmed at time of shipment and may include pass-through tariff estimates.
If ordering from or shipping to Australia, China, or Hong Kong, please contact your distributor.
Precision temperature control starts with a precision temperature sensor. This is a ±1% thermistor that is 10 kΩ at 25°C.

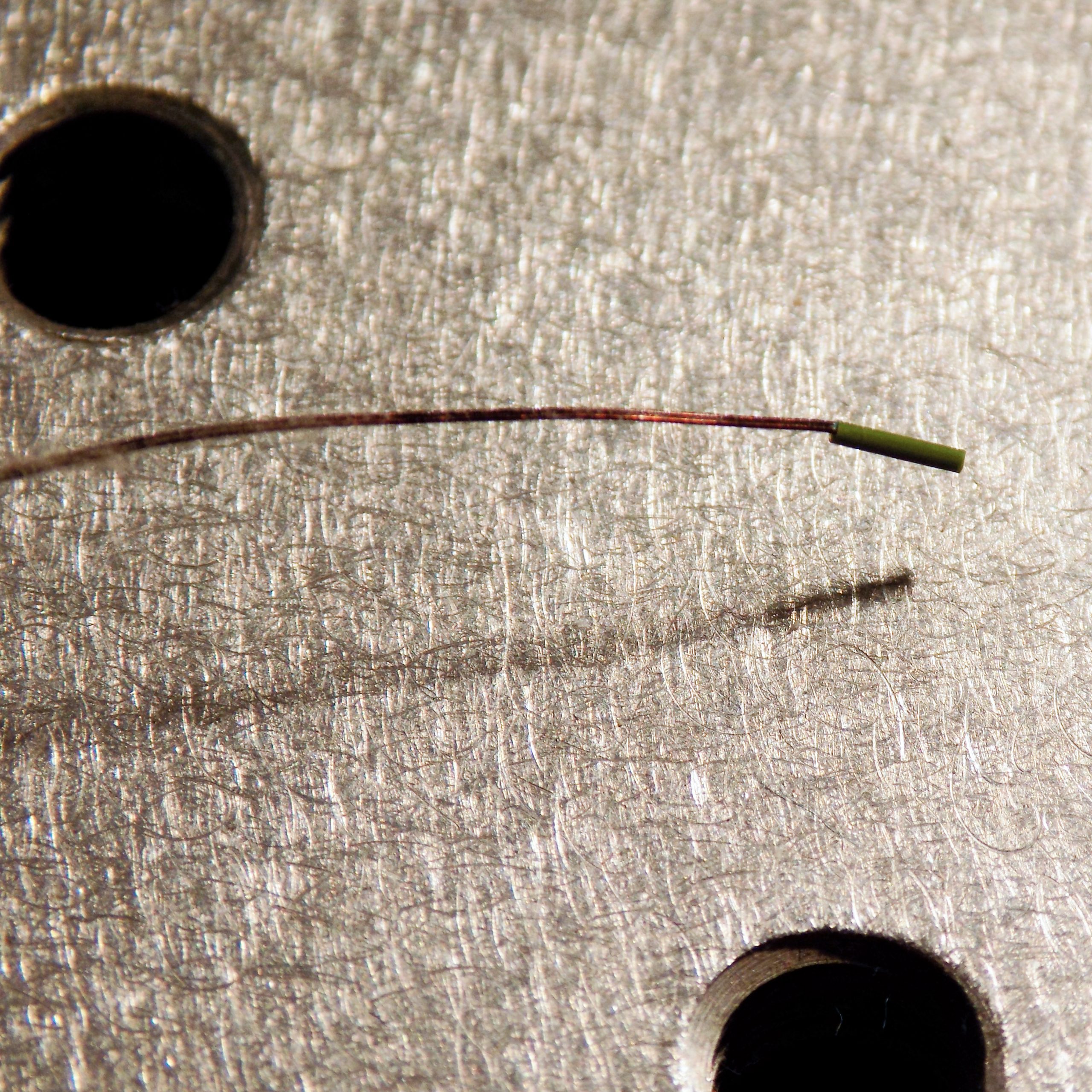

It has a unique 0.6mm x 3mm cylindrical head encapsulated in a polyimide tube for applications where embedding the thermistor is required. It has 38 AWG nickel bifilar leads, which provide isolation from metal housing.
Dissipation Constant is ~0.2 mW / °C in still air.
Thermal Time Constant is ~200 msec in stirred liquid.
It is ideal for optical or thin surfaces and small laser packages. A complete Resistance vs. Temperature chart is included in the datasheet. It is sold in packs of 5.
Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.
Wavelength Temperature Controllers include stable bias current sources of 10 µA and 100 µA. The following selection guide shows where the thermistor signal is within range of the controller inputs.
| MODEL | RESISTANCE at 25°C | 10 µA RANGE | 100 µA RANGE |
| TCS605 | 5 kΩ | -50 to -2°C | -20 to +33 °C |
| TCS610 | 10 kΩ | -45 to +13°C | -8 to +50 °C |
| TCS10K5 | 10 kΩ | -45 to +13°C | -8 to +50 °C |
| TCS620 | 20 kΩ | -35 to +28°C | +6 to +69 °C |
| TCS650 | 50 kΩ | -18 to +49°C | +25 to +92 °C |
| TCS651 | 100 kΩ | -6 to +64°C | +41 to +114 °C |
