WTC32ND 2.2 A Temperature Controller
- Ultrastable PI control
- Drive ±2.2A of TEC or RH current
- Linear Stability: 0.0009°C
- Small size: 1.3" x 1.28" x 0.313"
- Heat and cool current limits
- Supports Thermistors, RTDs, IC sensors
- Single supply operation: +5 V to +30 V
- Adjustable sensor bias current
- 14 pin DIP PCB mount
- Monitor Actual Temperature
WTC32ND 2.2 A Temperature Controller
- Ultrastable PI control
- Drive ±2.2A of TEC or RH current
- Linear Stability: 0.0009°C
- Small size: 1.3" x 1.28" x 0.313"
- Heat and cool current limits
- Supports Thermistors, RTDs, IC sensors
- Single supply operation: +5 V to +30 V
- Adjustable sensor bias current
- 14 pin DIP PCB mount
- Monitor Actual Temperature
WTC32ND 2.2 A Temperature Controller
- Ultrastable PI control
- Drive ±2.2A of TEC or RH current
- Linear Stability: 0.0009°C
- Small size: 1.3" x 1.28" x 0.313"
- Heat and cool current limits
- Supports Thermistors, RTDs, IC sensors
- Single supply operation: +5 V to +30 V
- Adjustable sensor bias current
- 14 pin DIP PCB mount
- Monitor Actual Temperature
-
1 - 5 each$104.00
-
6 - 14 each
$104.00$97.00 -
15 - 24 each
$104.00$95.00 -
25+ each
$104.00$93.00
Contact Factory for High Volume Pricing
Price adjustments will be reflected in the cart. For availability information please contact us.
All prices are in US dollars. Prices do not include shipping charges. All prices will be confirmed at time of shipment and may include pass-through tariff estimates.
If ordering from or shipping to Australia, China, or Hong Kong, please contact your distributor.
Supply Range: +5 to +30 V
Temperature Control Output Current: up to ±2.2 A
Temperature Stability: 0.0009°C (10 kΩ thermistor at 25°C) over one hour
Stability across ambient: 0.002°C (10 kΩ thermistor at 25°C) over an hour – Ideal for scanning applications
Setpoint vs. Actual Temperature Accuracy: 2 mV typical
Features:
-Heat and Cool Current Limits
-PI controller minimizes overshoot and time to temperature
-Compatible with multiple sensors
-Adjustable sensor bias current optimizes sensor feedback voltage
-Can operate with unipolar current for Resistive Heaters
Maximum Power Dissipation: 9 W
Heatspreader Temperature Rise: 30°C / W without external heatsinking
14 pin DIP PCB Mount size: 33 x 32 x 8 mm

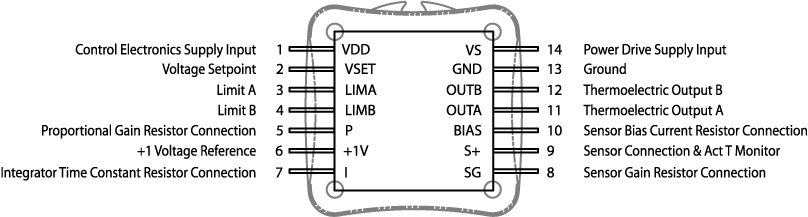

WTC32ND Temperature Controller Pinout – Top View

NOTE: The WHY56ND and WTC32ND do NOT have the same pin configuration.
