WHS302 Heatsink for WXX Controllers
CAN BE USED WITH
- LDTC Series 2.2 A Laser Driver & Thermal Control
- WHY5640 2.2 A Temperature Controller
- WLD3343 2.2 A Laser Diode Driver
- WLD3343 2.2 A Lower Noise Laser Diode Driver
- WLD3343 3 A Laser Diode Driver
- WLD3343 3 A Lower Noise Laser Diode Driver
- WLD3343HB 2.2 A Li+ Battery Laser Diode Driver
- WTC3243 2.2 A Temperature Controller
- WTC3243HB 2.2 A Li+ Battery Temperature Controller
- WTCP 5 A, 5 V PWM Temperature Controller
1 - 5 each
$16.00
-
1 - 5 each$16.00
-
6 - 14 each
$16.00$15.00 -
15+ each
$16.00$14.00
Contact Factory for High Volume Pricing
Price adjustments will be reflected in the cart. For availability information please contact us.
All prices are in US dollars. Prices do not include shipping charges. All prices will be confirmed at time of shipment and may include pass-through tariff estimates.
If ordering from or shipping to Australia, China, or Hong Kong, please contact your distributor.
The WHS302 heatsink is designed for use with the WTCP5V5A, WTC3243, WTC3243HB, or WHY5640 temperature controllers, and the WLD3343, WLD3343-2L, WLD3343-3A, WLD3343-3L or WLD3343HB laser diode drivers.
The controllers operate to 500 mA without any additional heatsinking (assuming 5 V operation). To operate up to 1 A, add the thermal washer WTW002, and WHS302 heatsink. To operate to the full 2.2 A, add a fan WXC303 (5 V) or WXC304 (12 V). For convenience, a kit with two 0.75″ and two 1″ screws is available: WXC305.
Kits combine these elements: WEV300 (includes thermal washer, heatsink and screw kit), WEV301 (includes thermal washer, heatsink, screw kit, and a +5 V fan) or WEV302 (includes thermal washer, heatsink, screw kit, and a +12 V fan).
Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.
Material: Aluminum

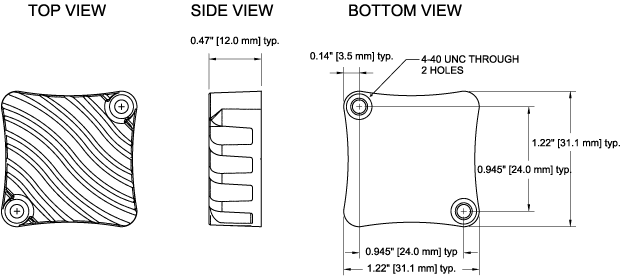

Dimensions:
KITS
| SKU | DESCRIPTION | PRICE | IMAGE |
| WEV300 | WEV300 Thermal Solution Kit |
$25.00 You save (%) |
 |
| WEV301 | WEV301 Thermal Solution Kit with +5 V Fan |
$51.00 You save (%) |
 |
| WEV302 | WEV302 Thermal Solution Kit with +12 V Fan |
$51.00 You save (%) |
 |
RELATED PARTS
| SKU | DESCRIPTION | PRICE | IMAGE |
| WHY5640 | WHY5640 2.2 A Temperature Controller | $78.00 |  |
| WLD3343 | WLD3343 2.2 A Laser Diode Driver | $99.00 |  |
| WLD3343-2L | WLD3343 2.2 A Lower Noise Laser Diode Driver | $124.00 |  |
| WLD3343HB | WLD3343HB 2.2 A Li+ Battery Laser Diode Driver | $105.00 |  |
| WLD3343-3A | WLD3343 3 A Laser Diode Driver | $124.00 |  |
| WLD3343-3L | WLD3343 3 A Lower Noise Laser Diode Driver | $134.00 |  |
| WTC3243 | WTC3243 2.2 A Temperature Controller | $99.00 |  |
| WTC3243HB | WTC3243HB 2.2 A Li+ Battery Temperature Controller | $104.00 |  |
| WTCP5V5A | WTCP 5 A, 5 V PWM Temperature Controller |
$104.00 You save (%) |
 |
| WTW002 | WTW002 Thermal Washer for Wxx Controllers |
$3.00 You save (%) |
 |
| WXC303 | WXC303 +5 V Fan |
$33.00 You save (%) |
 |
| WXC304 | WXC304 +12 V Fan |
$33.00 You save (%) |
 |
| WXC305 | WXC305 Screw Kit | $6.00 |  |
