Switching Power Supply 3 A, 7.2 V
- List Item #1
- List Item
$161.00
$161.00
The PWRPAK-7V is a switching power supply that can be used with a variety of Wavelength Electronic controllers. It drives up to 3.0 A at 7.2 VDC.
Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.
Output current: 3.0 A
Output voltage: 7.2 VDC
Input Voltage: 90-264 VAC, 47-63 Hz
Input Ripple & Noise: 1% peak-to-peak
Termination: 2.1 mm diameter with 2.5 mm adapter added

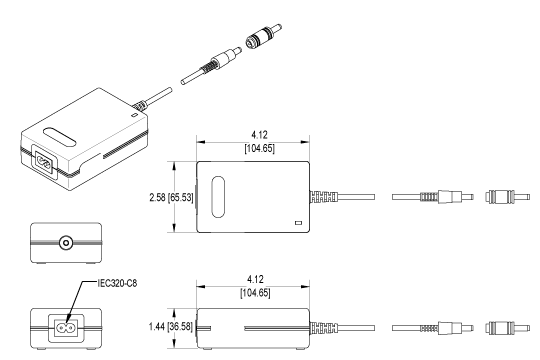

Dimensions: 4.12 x 2.58 x 1.44″ (104.65 x 65.53 x 36.58 mm)
Certifications: CE Mark Approved to UL, GS and TUV Safety Standards
