Switching Power Supply 3 A, 9 V
CAN BE USED WITH
- HTC1500 1.5 A Low Profile OEM Temperature Controller
- HTC1500-62 1.5 Amp Low Profile OEM Temperature Controller
- HTC3000 3 A Low Profile OEM Temperature Controller
- HTC3000-62 3 A Low Profile OEM Temperature Controller
- HTC4000-62 4 A Low Profile OEM Temperature Controller
- LD2.5CHA 2.5 A / 30 V Laser Diode Driver
- PID1500 1.5 A Temperature Controller
- WTC3293-14 2.2 A Temperature Controller
1 - 5 each
$161.00
-
1 - 5 each$161.00
-
6 - 14 each
$161.00$145.00 -
15+ each
$161.00$137.00
Contact Factory for High Volume Pricing
Price adjustments will be reflected in the cart. For availability information please contact us.
All prices are in US dollars. Prices do not include shipping charges. All prices will be confirmed at time of shipment and may include pass-through tariff estimates.
If ordering from or shipping to Australia, China, or Hong Kong, please contact your distributor.
The PWRPAK-9V is a switching power supply that can be used with a variety of Wavelength Electronic controllers. It drives up to 3 A at 9 VDC.
Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.
Output current: 3 A
Output voltage: 9 VDC
Input Voltage: 90-264 VAC, 47-63 Hz
Input Ripple & Noise: 1% peak-to-peak
Termination: 2.5 mm dia

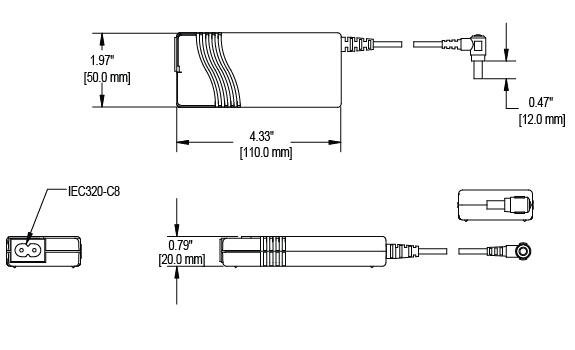

Dimensions: 2″ x 4.33″ x 0.8″ (50 x 110 x 20 mm)
Certifications: CE Mark Approved to UL, GS and TUV Safety Standards
