Switching Power Supply 13 A, 5 V
CAN BE USED WITH
- LD10CHA 10 A / 30 V Laser Diode Driver
- MPT10000 10 A Temperature Controller
- PLD10000 Laser Diode Driver – 10 A, PCB Mount
- PLD12500 Laser Diode Driver – 12.5 A, PCB Mount
- PLD10K-CH 10 A Laser Diode Driver, Chassis Mount
- PLD12.5K-CH 12.5 A Chassis Mount Laser Driver
- PTC10K-CH 10 A Temperature Controller, Chassis Mount
- PTC10K-BOOST Booster for PTC Temperature Controller
Contact Factory for High Volume Pricing
Price adjustments will be reflected in the cart. For availability information please contact us.
All prices are in US dollars. Prices do not include shipping charges. All prices will be confirmed at time of shipment and may include pass-through tariff estimates.
If ordering from or shipping to Australia, China, or Hong Kong, please contact your distributor.

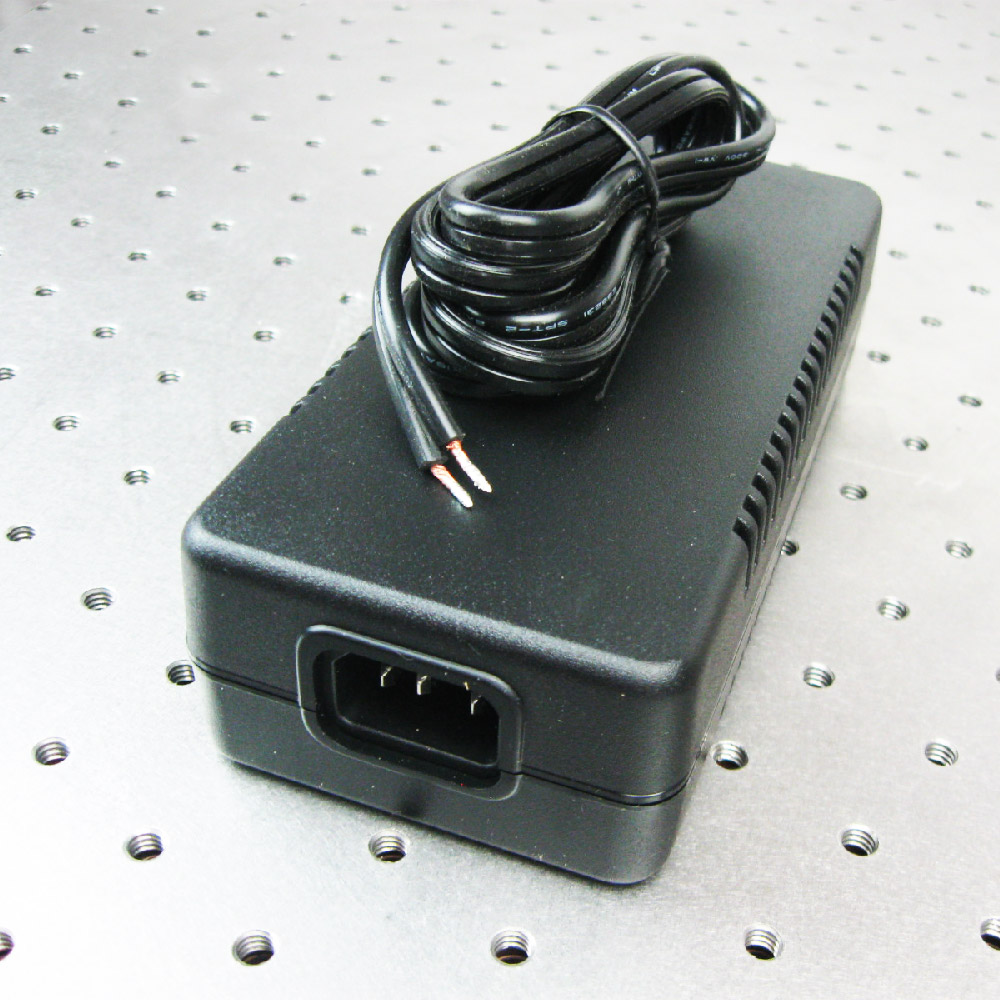

This switching power supply is 5 VDC, 13 A operating off 100-240 VAC (47-63 Hz). The end is unterminated for use with the LD10CHA, PLD12.5K-CH, PLD10K-CH, PTC10K-CH, or MPT10000. It can power the PLD12500 or PLD10000 when used with the PLD10EV evaluation board or the PTC10000 when used with the PTCEVALPCB.
Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.
Output current: 13 A
Output voltage: 5 VDC
Input Voltage: 100-240 VAC, 47-63 Hz
Input Ripple & Noise: 1%
Termination: Open ended

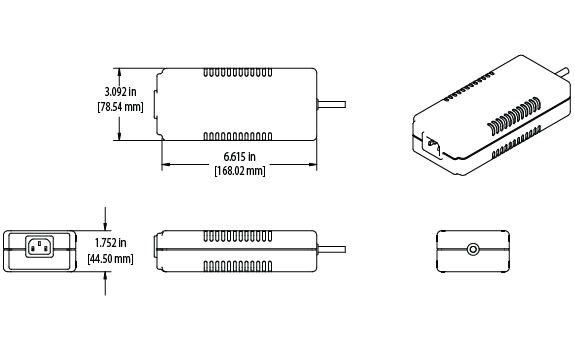

Dimensions: 3″ x 6.6″ x 1.75″ (78 x 168 x 44.5 mm)
Certifications: CE Mark Approved to UL and TUV Safety Standards
