MEETING LASER REQUIREMENTS

The LDxCHA product family has current levels from 2.5 A up to 15 A. The following models are available: LD2.5CHA (2.5 A), LD5CHA (5 A), LD10CHA (10 A), or LD15CHA (15 A). These drivers meet laser compliance requirements from 3 V with a single 5 V supply, and up to 28 V with an additional 30 V power supply, supporting applications such as materials processing, industrial laser cutting, and laser diode bars / stacks. This product family supports A & B type laser diodes.  They are ideal current sources for countermeasure QCLs where noise is not a concern and high output is required.

WORRY-FREE SETUP

The new circuitry in the LDxCHA allows for the laser diode current limit and the laser diode current setpoint to be fine-tuned without output current enabled to the laser. This allows users to set the specific safety and output levels required without risk of overdriving the laser during initial configuration.

DESIGNED FOR EASY INTEGRATION

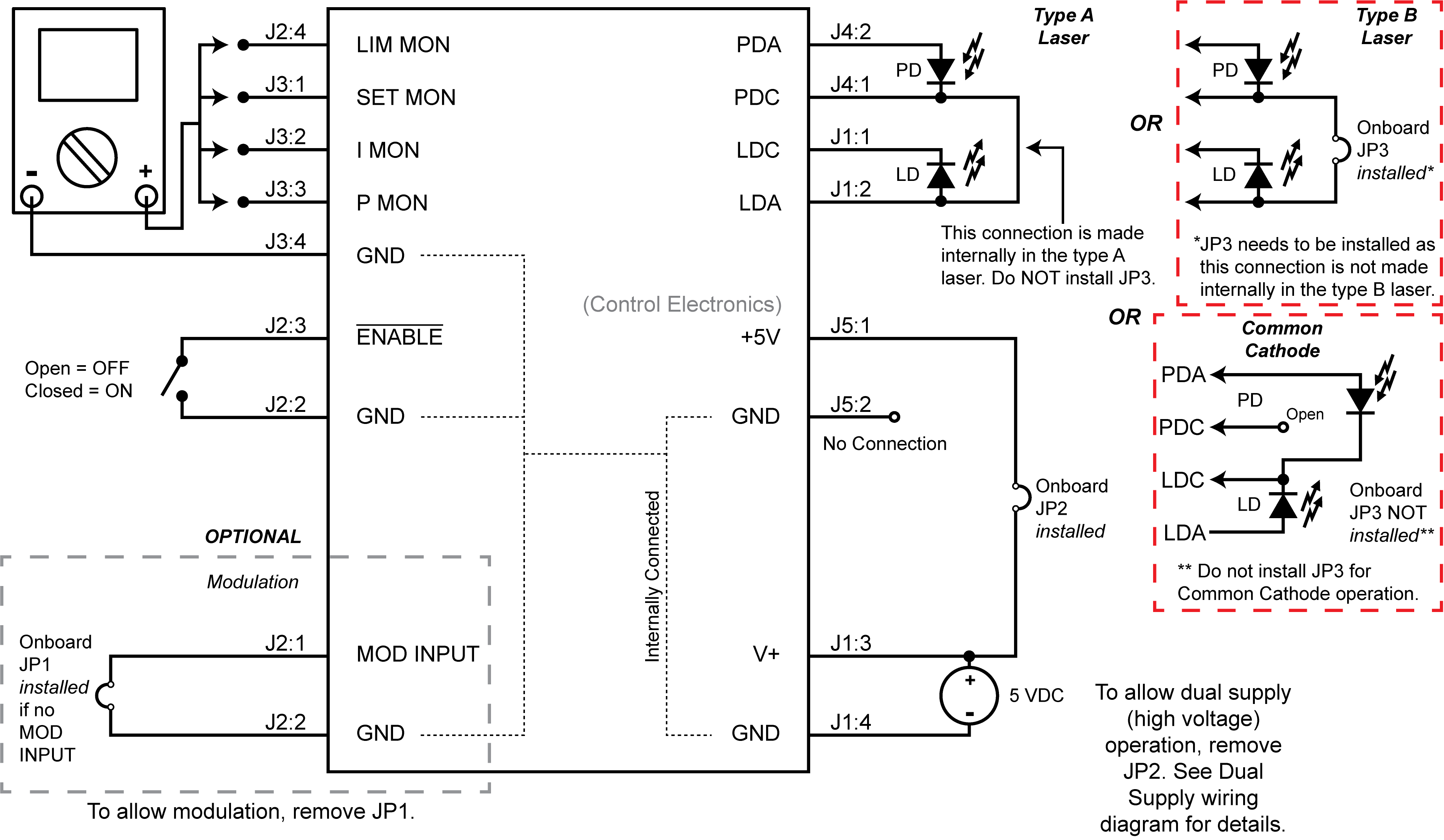

The LDxCHA drivers, with their small size and easy mountability, can be attached directly to an optics table or designed into a system. Two trimpots set the current limit and current setpoint, while five screw terminal blocks allow for simple wiring.

LASER SAFETY FEATURES

Built-in safety features ensure robust designs for real world operating conditions: clipping current limit ensures that the output current will never exceed the setpoint; and slow start circuit ramps the output current. Long‑term reliability means better up-time, fewer service calls, and more satisfied customers.

PRACTICAL, ROBUST DESIGN

Thoughtfully designed features provide valuable benefits and protect the laser against operational anomalies.

SERVICE AND SUPPORT

Download the brochure to view a more detailed specification chart, and then call Wavelength’s sales engineers so we can help you choose the right driver for your application. Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.
