WCB325 PWRPAK-16A-5V Wiring Kit

WCB325 PWRPAK-16A-5V Wiring Kit

    WCB325 PWRPAK-16A-5V Wiring Kit

      Contact Factory for High Volume Pricing
      Price adjustments will be reflected in the cart. For availability information please contact us.

      All prices are in US dollars. Prices do not include shipping charges. All prices will be confirmed at time of shipment and may include pass-through tariff estimates.

      If ordering from or shipping to Australia, China, or Hong Kong, please contact your distributor.

      This kit simplifies wiring of the PWRPAK-16A-5V switching power supply for use with the LD10CHA (10 A), or LD15CHA (15 A). This kit contains:
      • 24 AWG black wire, 10” with red ring lug at one end
      • 14 AWG black and white twisted pair wire, 24” with stripped ends
      • 14 AWG red and black twisted pair wire, 24” with two blue ring lugs at one end
      A wiring diagram is shown on the Specification Page. Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.

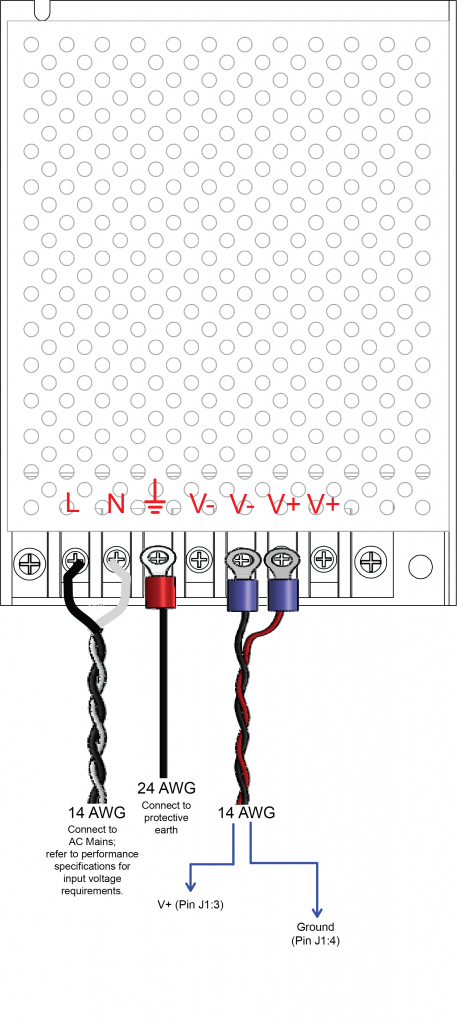

      Example wiring diagram for ( PWRPAK-16A-5V) to an LDxCHA family Laser Diode Driver.

      Note that in some cases, common ground should be tied to power supply ground through a high impedance to keep the voltages from floating out of range of the safety circuits. See the datasheet for more details.

      DATASHEETS
      RELATED PARTS
      SKUDESCRIPTIONPRICEIMAGE
      PWRPAK-16A-5V Switching Power Supply 16 A, 5 V $194.00
      LD10CHA LD10CHA 10 A / 30 V Laser Diode Driver $450.00
      LD15CHA LD15CHA 15 A / 30 V Laser Diode Driver $521.00
