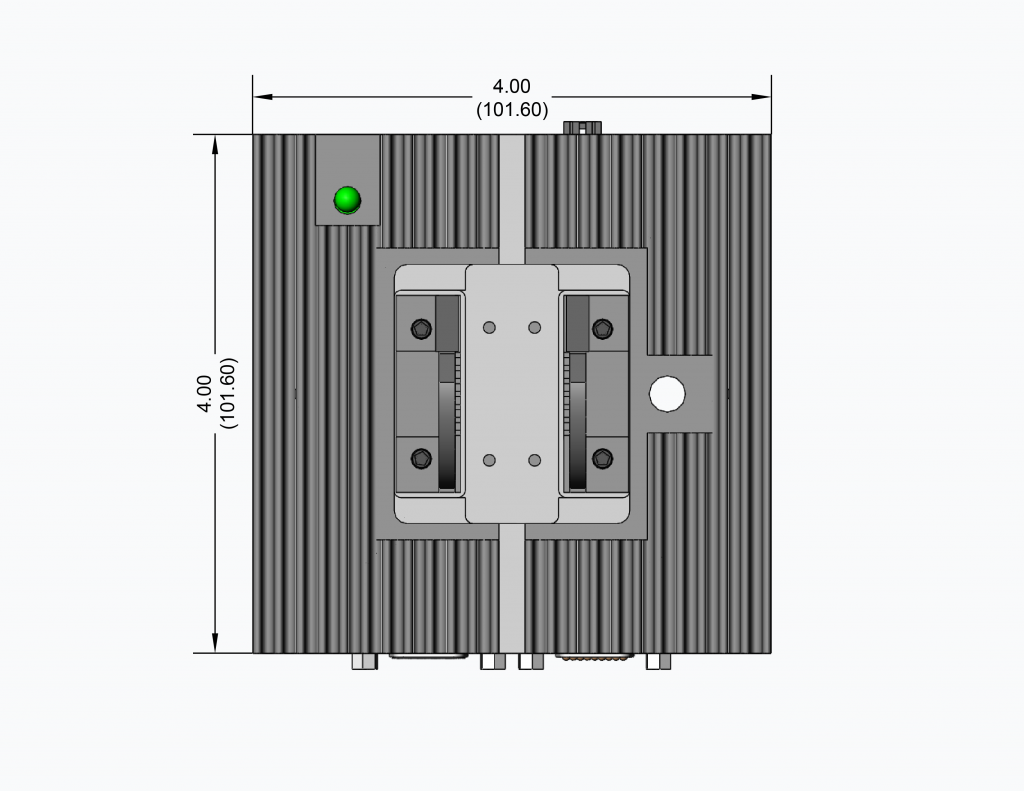

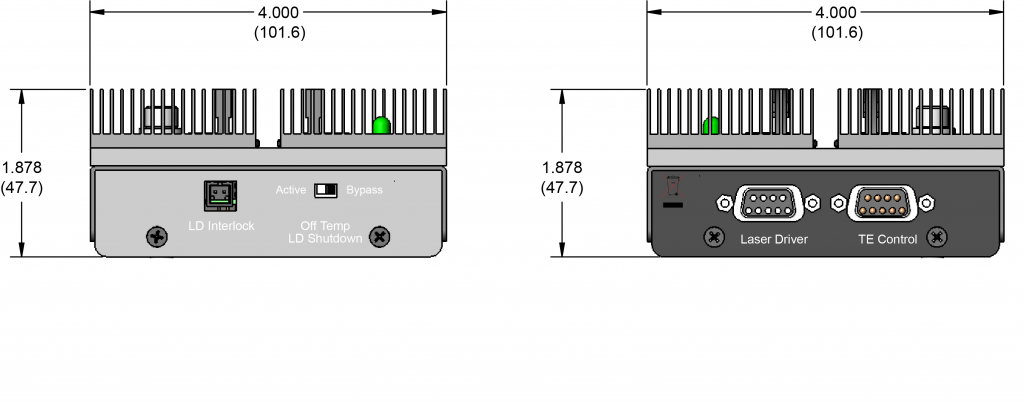

LDMOUNT 5A Butterfly Laser Diode Mount
CAN BE USED WITH
- LD2.5CHA 2.5 A / 30 V Laser Diode Driver

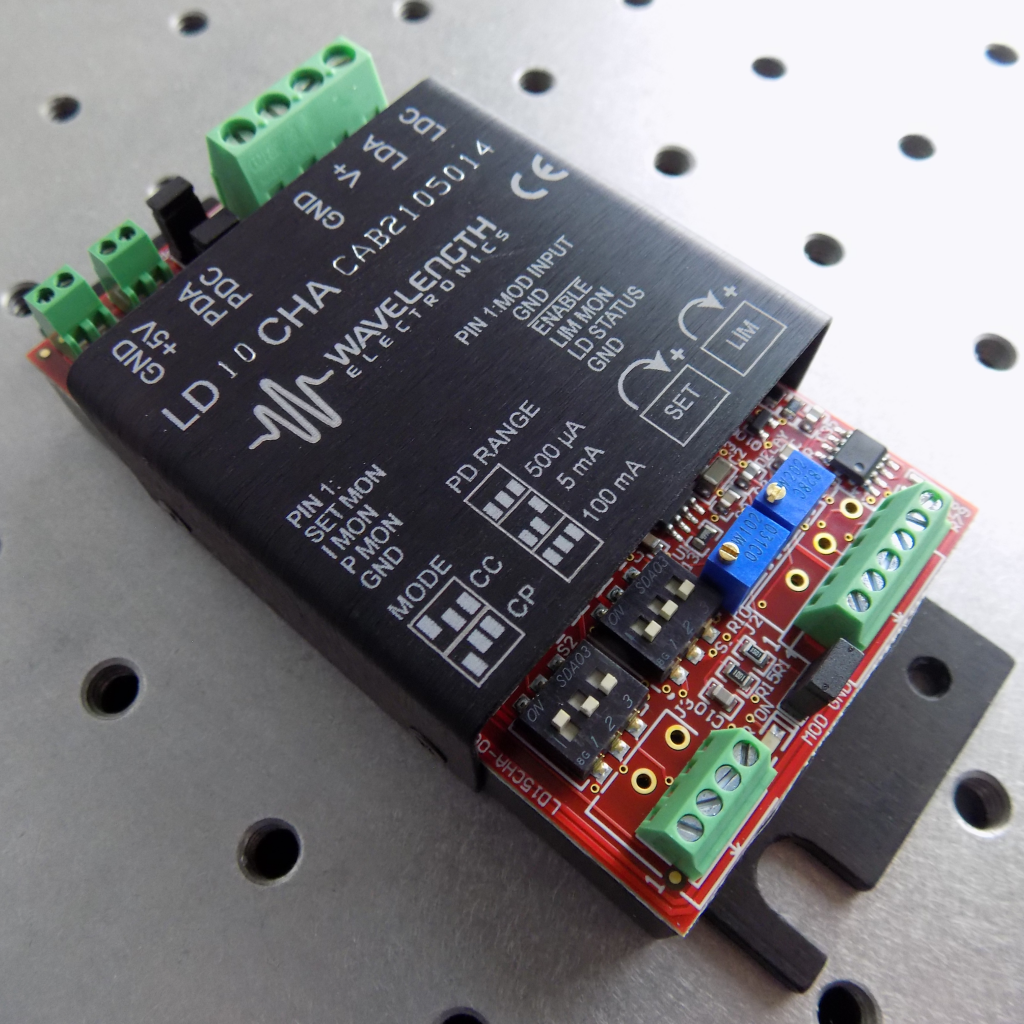

- LD5CHA 5 A / 30 V Laser Diode Driver
- LD10CHA 10 A / 30 V Laser Diode Driver
- LD15CHA 15 A / 30 V Laser Diode Driver
- LDTC Series 500 mA Laser Driver & Thermal Control
- LDTC Series 1 A Laser Driver & Thermal Control
- LDTC Series 2.2 A Laser Driver & Thermal Control
- LDTC Series 2.2 A Laser Driver & Thermal Control

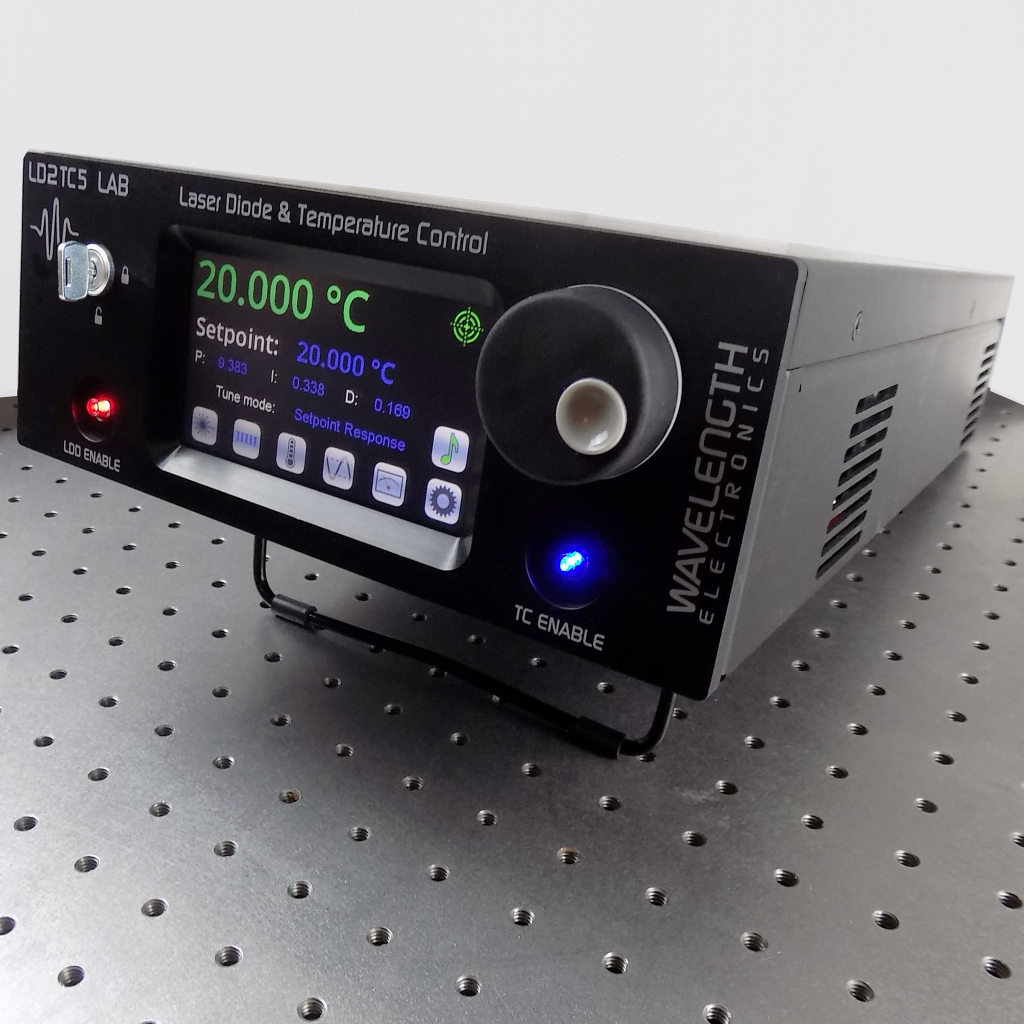

- LD2TC5 LAB Series Combination Laser Diode & Temperature Control Instrument
- LD5TC10 LAB Series Combination Laser Diode & Temperature Control Instrument
- LFI3751 5 A Analog Temperature Control Instrument
- LFI3751 5 A Digital Temperature Control Instrument
- PLD5K-CH 5 A Laser Diode Driver, Chassis Mount
- PLD10K-CH 10 A Laser Diode Driver, Chassis Mount
- PLD12.5K-CH 12.5 A Chassis Mount Laser Driver
- PTC2.5K-CH 2.5 A Temperature Controller, Chassis Mount
- PTC5K-CH 5 A Temperature Controller, Chassis Mount
- PTC10K-CH 10 A Temperature Controller, Chassis Mount
- TC10 LAB Series 10 A Temperature Control Instrument
- TC15 LAB Series 15 A Temperature Control Instrument
- Evaluation PCB for WLD3343 Laser Diode Driver
- Evaluation PCB for WTC3243 Temperature Controller
1 - 5 each
$599.00
-
1 - 5 each$599.00
-
6+ each
$599.00$587.00
Available on backorder
Contact Factory for High Volume Pricing
Price adjustments will be reflected in the cart. For availability information please contact us.
All prices are in US dollars. Prices do not include shipping charges. All prices will be confirmed at time of shipment and may include pass-through tariff estimates.
If ordering from or shipping to Australia, China, or Hong Kong, please contact your distributor.
VERSATILITY
Designed for 14-pin butterfly laser diodes with internal thermistors and Thermo Electric Coolers (TEC), the LDMOUNT is a laser diode mount with integrated heat sinking, and simple connections between the drivers and the diode laser. The LDMOUNT has easy connectivity. A zero insertion force (ZIF) socket holds the laser. Two 9-pin DSUB connectors enable TEC and laser driver control. Two basic butterfly laser diode types are supported. For any other pinout, the LDMOUNT-CU Card is available for hand wiring.SAFETY
The LDMOUNT has several built-in safety features. These include a reverse bias protection diode across the laser diode, an interlock circuit for the laser diode current, and a TEC Active/Bypass switch to require active temperature control before laser current can be enabled.FEATURES & BENEFITS
- Capable of running lasers up to 5 A
- Capable of running thermoelectrics up to 5 A
- Compatible with 14-pin butterfly laser diode packages
- Type 1 & Type 2 butterfly packages are supported with pre-soldered connection card
- Zero insertion force (ZIF) socket holds laser diode
- Laser interlock safety circuit
- TEC Active/Bypass interlock safety circuit
- Mounts to an optics table with standard 1/4-20″ screw
- Compatible with 8 Wavelength temperature controllers and laser drivers
APPLICATIONS
The LDMOUNT is ideal for pump and communication diode lasers. The user is able to change between the types easily by using the provided pre-configured connection card. Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.Maximum Laser Current: 5A
Laser Polarity: Anode Grounded
Maximum TEC Current: 5A
Maximum TEC Voltage: Laser specific
Temperature Sensor Supported: Thermistor
Interlock Short Circuit Current: 10mADC
Bypass Switch Source Current: 1.1mA
Standard card supports the following laser types:
The custom configuration card, LDMOUNT-CU, supports any configurations not shown below.

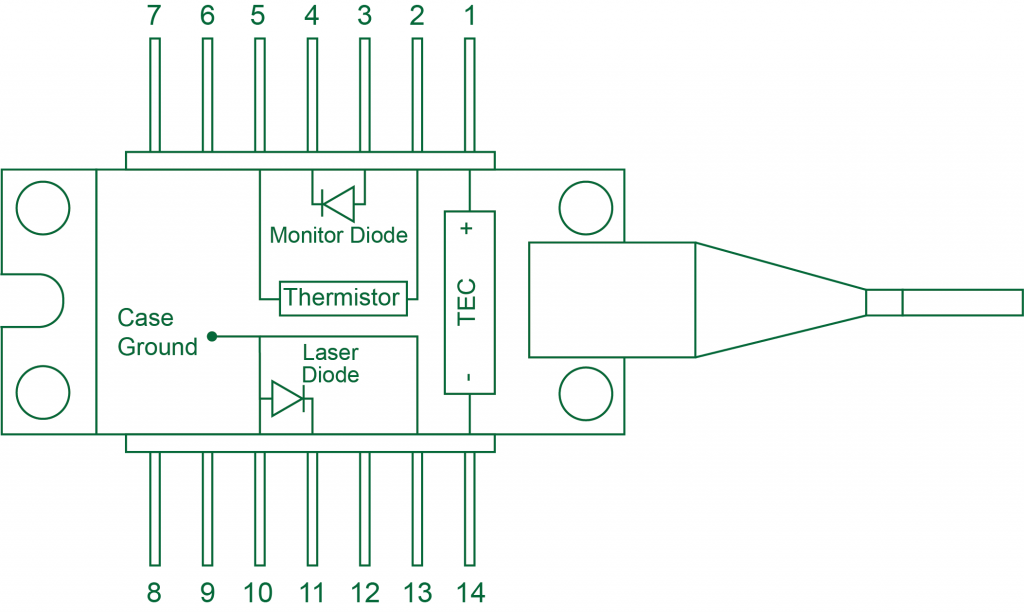

Type 1 Laser Schematic

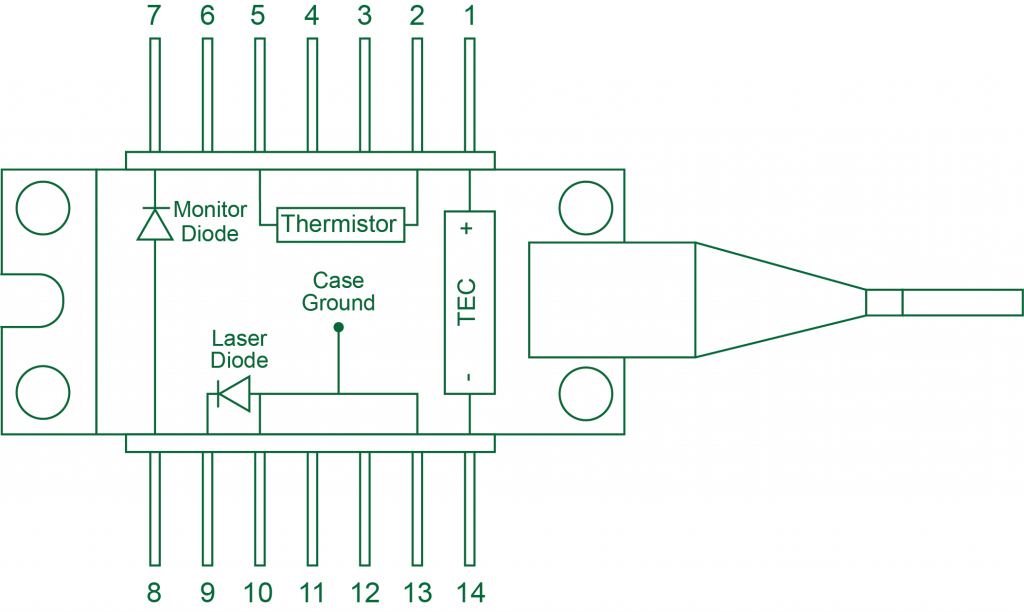

Alternate Type 1 Laser Schematic

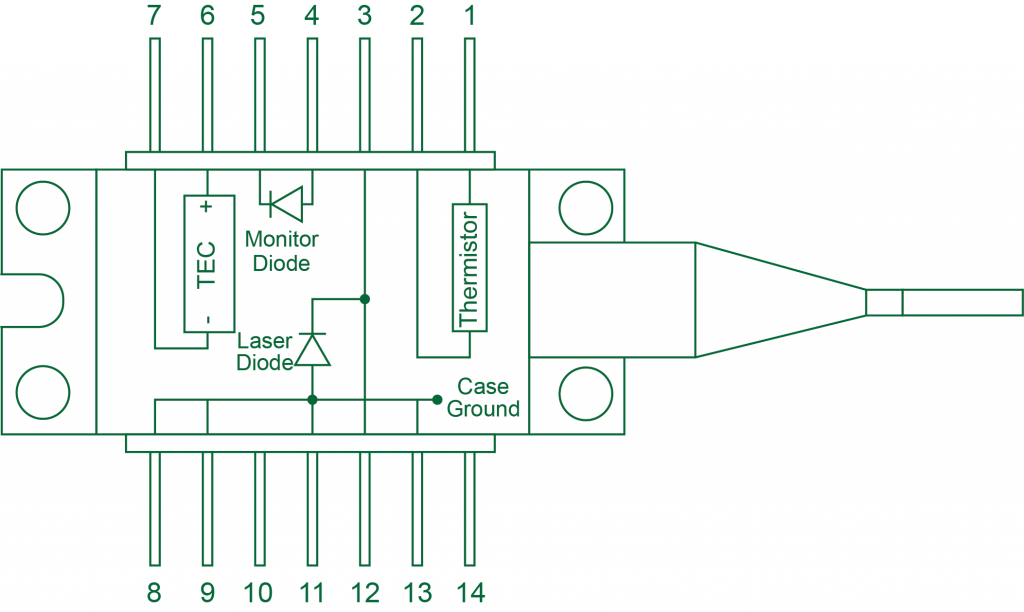

Type 2 Laser Schematic
The custom configuration card, LDMOUNT-CU, supports any configurations not shown above.
ACCESSORIES
| SKU | DESCRIPTION | PRICE | IMAGE |
| LDMOUNT-CU | Custom Butterfly Card for the LDMOUNT |
$79.00 You save (%) |
 |
| WCB315 | WCB315 LDMOUNT Cable for the TC LAB Series | $129.00 |  |
| WCB316 | WCB316 LDMOUNT Cable for the LFI3751 | $98.00 |  |
| WCB317 | WCB317 LDMOUNT Cable for the WTC3243 | $79.00 |  |
| WCB318 | WCB318 LDMOUNT Cable for the WLD3343 | $89.00 |  |
| WCB319 | WCB319 LDMOUNT Cable for the TC LAB Series (no Lock) | $129.00 |  |
| WCB320 | WCB320 LDMOUNT Cable for the LDTC Series | $89.00 |  |
| WCB321 | WCB321 LDMOUNT Cable for the PLD-CH Series | $89.00 |  |
| WCB322 | WCB322 LDMOUNT Cable for the PTC-CH Series | $86.00 |  |
| WCB324 | WCB324 LDMOUNT Cable for the LDxCHA Series | $89.00 | |

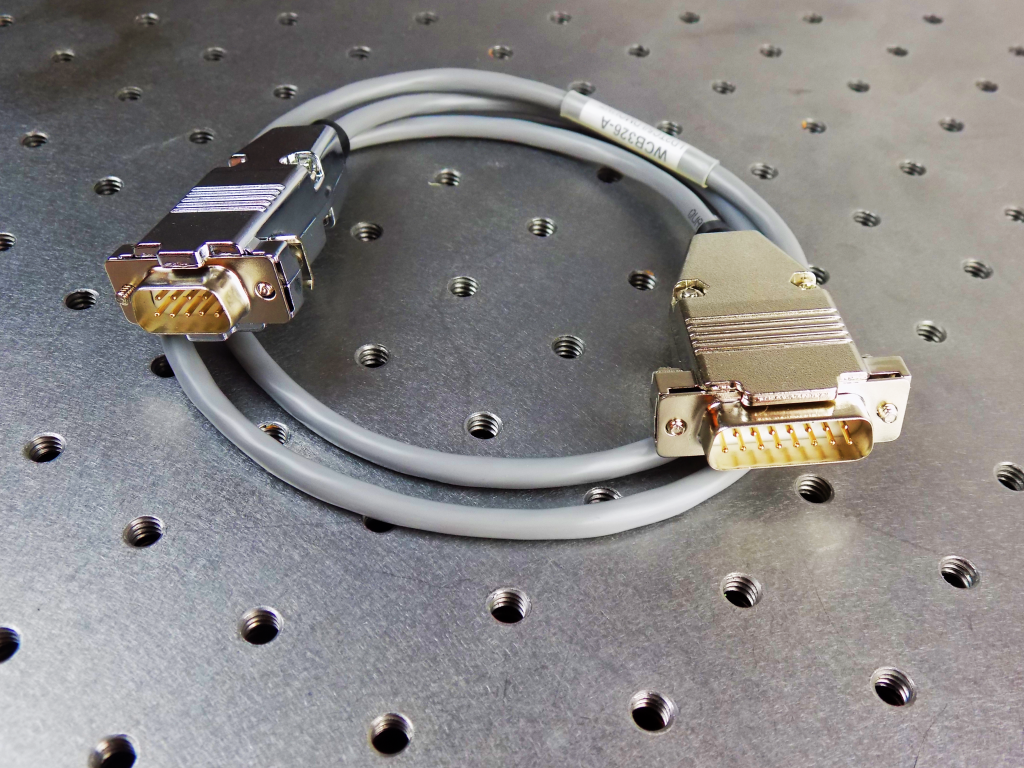

| WCB326 | WCB326 LDMOUNT Cable (Type A/B) for the LDTC LAB Series Combo Instrument | $89.00 |  |

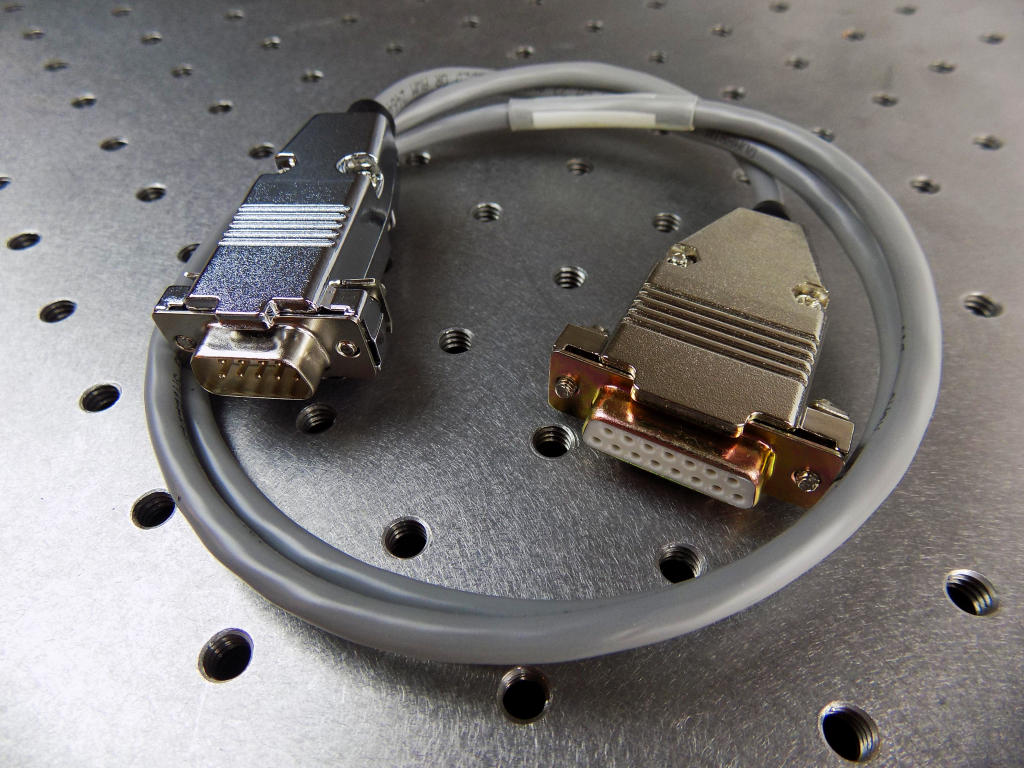

| WCB327 | WCB327 LDMOUNT Cable (Type C) for the LDTC LAB Series Combo Instrument | $89.00 |  |
