LFI3751 5 A Digital Temperature Control Instrument
- Drive ±5 A of TEC or RH current
- 9.5V Compliance Voltage
- Digital PID Improves Stability for RTDs
- Addressable RS-232 or USB
- Supports Thermistors, RTDs, IC sensors
- Free LabVIEW drivers
- Linear Stability: 0.001°C
- PID Autotune
- Autoranging sensor bias currents
- Heat and cool current limits
LFI3751 5 A Digital Temperature Control Instrument
- Drive ±5 A of TEC or RH current
- 9.5V Compliance Voltage
- Digital PID Improves Stability for RTDs
- Addressable RS-232 or USB
- Supports Thermistors, RTDs, IC sensors
- Free LabVIEW drivers
- Linear Stability: 0.001°C
- PID Autotune
- Autoranging sensor bias currents
- Heat and cool current limits
- High and low temperature limits
LFI3751 5 A Digital Temperature Control Instrument
- Drive ±5 A of TEC or RH current
- 9.5V Compliance Voltage
- Digital PID Improves Stability for RTDs
- Addressable RS-232 or USB
- Supports Thermistors, RTDs, IC sensors
- Free LabVIEW drivers
- Linear Stability: 0.001°C
- PID Autotune
- Autoranging sensor bias currents
- Heat and cool current limits
- High and low temperature limits
-
1 each$2,449.00
-
2 - 5 each
$2,449.00$2,376.00 -
6 - 14 each
$2,449.00$2,363.00 -
15+ each
$2,449.00$2,351.00
Contact Factory for High Volume Pricing
Price adjustments will be reflected in the cart. For availability information please contact us.
All prices are in US dollars. Prices do not include shipping charges. All prices will be confirmed at time of shipment and may include pass-through tariff estimates.
If ordering from or shipping to Australia, China, or Hong Kong, please contact your distributor.
From the front panel, adjust temperature limits, current limits, setpoint, PID control values, sensor calibration data, and enable or disable output current. The 4-digit display shows actual or setpoint temperature or resistance, output current and voltage.
This instrument offers unique features. Autotune PID is a sophisticated algorithm for optimizing the PID control parameters to your load. With the touch of a button, the LFI3751 automatically optimises control settings for most thermal loads, reducing overshoot or improving temperature stability. Autoranging sensor bias currents keep your sensor voltage in the optimal range for maximum signal to noise ratio. It comes with Addressable RS232 and USB control is available with an adapter cable: WCB404. Free LabVIEW drivers simplify computer control. Benchlink software simulates the front panel control from your PC. (NOTE: The Benchlink Installer is not compatible with 64-bit operating systems. A workaround for Benchlink install is available. Contact Tech Support for details if your application uses the Windows 64-bit OS and Benchlink front panel emulation control.)
Sensor calibration is easy with a reference right on the front panel. For example, to calibrate your thermistor, simply enter three data points from the Resistance vs. Temperature curve. The LFI3751 calculates the Steinhart-Hart coefficients and displays either actual temperature or sensor resistance. Also, view Thermoelectric current and voltage and limit current settings.
The LFI3751 Digital option provides better setpoint resolution and stability with low-resolution sensors such as RTDs. This option also offers improved overshoot suppression, 50% faster settling times, and faster calibration. An Analog control model is available: LFI3751 Analog.
When controlling laser diode temperature, the LDMOUNT-5A, a 14-pin butterfly laser diode mount with integrated heat sinking, is available for simple connections between the LFI3751 and the laser.
Wavelength also offers temperature control instruments with higher current and voltage capacity TC10 LAB (10A, 15V), or TC15 LAB (15A, 20V), a touchscreen interface, IntelliTune PID control optimization, and better stability.
Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. The standard product can be easily modified to meet your application requirements.
Power Supply: 115 / 230 VAC 60 / 50 Hz
Temperature Control Output Current: up to ±5 A
Temperature Stability: 0.001°C (10 kΩ thermistor at 25°C) over one hour
Stability across ambient: 0.001°C (10 kΩ thermistor at 25°C) over an hour – Ideal for scanning applications
Setpoint Resolution: 12 bit D to A
Features:
-Digital version provides better set point resolution and stability with low resolution sensors such as RTDs
-Digital version also offers improved overshoot suppression, 50% faster settling times, and faster calibration.
-High and Low Temperature Limits
-Heat and Cool Current Limits
-Digital PID controller with Autotune minimizes overshoot and time to temperature
-RS232 or USB interface
-Free Labview drivers or Benchlink software
-Easy sensor calibration
-Compatible with multiple sensors – especially for low resolution RTDs
-Autoranging sensor bias current optimizes sensor feedback voltage
-Can operate with unipolar current for Resistive Heaters
Front Panel of LFI3751 Temperature Controller

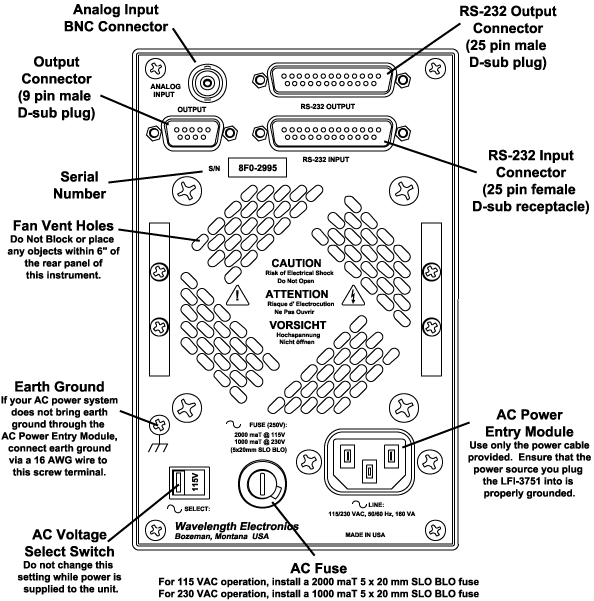

Rear Panel of LFI3751 Temperature Controller (note Analog Input is only available on the LFI3751 Analog)
