Evaluation PCB for HTC Series Temperature Controllers
Evaluation PCB for HTC Series Temperature Controllers
Evaluation PCB for HTC Series Temperature Controllers
1 - 5 each
$165.00
-
1 - 5 each$165.00
-
6 - 14 each
$165.00$162.00 -
15+ each
$165.00$160.00
Contact Factory for High Volume Pricing
Price adjustments will be reflected in the cart. For availability information please contact us.
All prices are in US dollars. Prices do not include shipping charges. All prices will be confirmed at time of shipment and may include pass-through tariff estimates.
If ordering from or shipping to Australia, China, or Hong Kong, please contact your distributor.
DESCRIPTION
SPECIFICATIONS
DOWNLOADS & DESIGN TOOLS
ACCESSORIES
DESCRIPTION
Use the HTCEVAL Evaluation Board to rapidly prototype a complete temperature control system using the HTC1500-62, HTC3000-62, or HTC4000-62 Temperature Controllers. The HTCHTSK is included.
Onboard switches, connectors, and trimpots make configuration and operation simple. The HTC Temperature Controller is not included.
DVM cable ready test points monitor the setpoint and actual temperature. There is a main power switch with LED indicator. Another switch enables or disables output current. Power and load connections, inputs and monitors are on a terminal strip. A 2.5 mm jack is compatible with the power supplies: PWRPAK-5V (up to 6 A), PWRPAK-7V (up to 2.8 A), PWRPAK-9V (up to 3 A), or PWRPAK-12V (up to 2.5 A). DIP switches select current range, unipolar or bipolar operation, onboard or remote setpoint, and sensor bias currents. Onboard trimpots set proportional gain and setpoint.
Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.
SPECIFICATIONS
Size: 4.2 x 4.4 x 1.26″ (with HTC and heatsink installed)
107 x 112 x 32 mm
0.062″ PCB Thickness

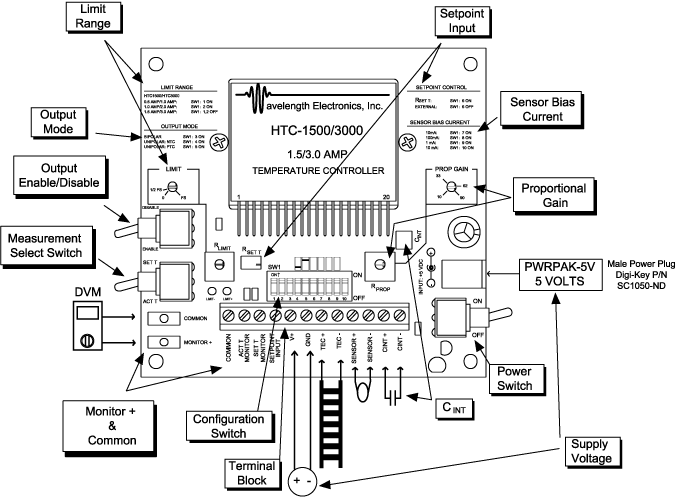

Top View of HTCEVAL

DOWNLOADS & DESIGN TOOLS
- HTCEVALPCB Assembly (IGS)
- HTCEVALPCB Assembly (PDF)
- HTCEVALPCB Assembly (SLDDRW)
- HTCEVALPCB Assembly (SLDPRT)
- HTCEVALPCB Assembly (STL)
- HTCEVALPCB Assembly with Controller (IGS)
- HTCEVALPCB Assembly with Controller (PDF)
- HTCEVALPCB Assembly with Controller (SLDDRW)
- HTCEVALPCB Assembly with Controller (SLDPRT)
- HTCEVALPCB Assembly with Controller (STL)
ACCESSORIES
| SKU | DESCRIPTION | PRICE | IMAGE |
| HTC1500-62 | HTC1500-62 1.5 Amp Low Profile OEM Temperature Controller | $102.00 | |
| HTC3000-62 | HTC3000-62 3 A Low Profile OEM Temperature Controller | $105.00 | |
| HTC4000-62 | HTC4000-62 4 A Low Profile OEM Temperature Controller | $125.00 | |
| HTCHTSK | Heatsink for HTC Series Temperature Controllers | $29.00 | |
| PWRPAK-5V | Switching Power Supply 6 A, 5 V | $161.00 | |
| PWRPAK-7V | Switching Power Supply 3 A, 7.2 V | $161.00 | |
| PWRPAK-9V | Switching Power Supply 3 A, 9 V | $161.00 | |
| PWRPAK-12V | Switching Power Supply 2.5 A, 12 V | $161.00 | |
| TCS10K5 | TCS10K5 10 kΩ Thermistor (0.5x3mm) Sold in 5-packs | $99.00 | |
| TCS610 | TCS610 10 kΩ Thermistor (2x3mm) Sold in 10-packs | $99.00 | |
| TCS620 | TCS620 20 kΩ Thermistor (2x3mm) Sold in 10-packs | $99.00 | |
| TCS650 | TCS650 50 kΩ Thermistor (2x3mm) Sold in 10-packs | $99.00 | |
| TCS651 | TCS651 100 kΩ Thermistor (2x3mm) Sold in 10-packs | $99.00 | |
| THERM-PST | Thermal Paste | $19.00 | |
