WHY56ND 2.2 A Temperature Controller
- Low cost
- Master/Booster for more current
- Single supply operation: +5 to +26 V
- Linear PI control
- Drive ±2.2A of TEC or RH current
- Small size: 1.3" x 1.28" x 0.313"
- Heat and cool current limits
- 14 pin DIP PCB mount
WHY56ND 2.2 A Temperature Controller
- Low cost
- Master/Booster for more current
- Single supply operation: +5 to +26 V
- Linear PI control
- Drive ±2.2A of TEC or RH current
- Small size: 1.3" x 1.28" x 0.313"
- Heat and cool current limits
- 14 pin DIP PCB mount
WHY56ND 2.2 A Temperature Controller
- Low cost
- Master/Booster for more current
- Single supply operation: +5 to +26 V
- Linear PI control
- Drive ±2.2A of TEC or RH current
- Small size: 1.3" x 1.28" x 0.313"
- Heat and cool current limits
- 14 pin DIP PCB mount
-
1 - 5 each$82.00
-
6 - 14 each
$82.00$76.00 -
15 - 24 each
$82.00$75.00 -
25+ each
$82.00$73.00
Contact Factory for High Volume Pricing
Price adjustments will be reflected in the cart. For availability information please contact us.
All prices are in US dollars. Prices do not include shipping charges. All prices will be confirmed at time of shipment and may include pass-through tariff estimates.
If ordering from or shipping to Australia, China, or Hong Kong, please contact your distributor.
Supply Range: +5 to +26 V
Temperature Control Output Current: up to ±2.2 A
Temperature Stability: 0.005°C (10 kΩ thermistor at 25°C) over one hour
Setpoint vs. Actual Temperature Accuracy: Can be <1% depending on external circuit precision – no actual temperature monitor point
Features:
-Heat and Cool Current Limits
-PI controller minimizes overshoot and time to temperature
-Compatible with resistive sensors (thermistors, RTDs)
-Can operate with unipolar current for Resistive Heaters
Maximum Power Dissipation: 9 W
Heatspreader Temperature Rise: 30°C / W without external heatsinking
14 pin DIP PCB Mount size: 1.3″ x 1.28″ x 0.31″

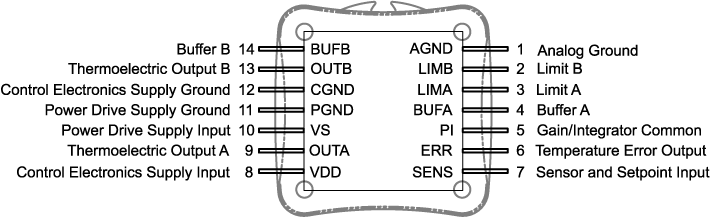

WHY56ND Temperature Controller Pinout – Top View

NOTE: The WHY56ND and WTC32ND do NOT have the same pin configuration.
