Evaluation Board for WTCP5V5A PWM Temperature Controller

  • 1 - 5 each
    $207.00
  • 6 - 14 each
    $207.00
    $203.00
  • 15+ each
    $207.00
    $201.00

Evaluation Board for WTCP5V5A PWM Temperature Controller

    • 1 - 5 each
      $207.00
    • 6 - 14 each
      $207.00
      $203.00
    • 15+ each
      $207.00
      $201.00

    Evaluation Board for WTCP5V5A PWM Temperature Controller

      • 1 - 5 each
        $207.00
      • 6 - 14 each
        $207.00
        $203.00
      • 15+ each
        $207.00
        $201.00
      • 1 - 5 each
        $207.00
      • 6 - 14 each
        $207.00
        $203.00
      • 15+ each
        $207.00
        $201.00

      Contact Factory for High Volume Pricing
      Price adjustments will be reflected in the cart. For availability information please contact us.

      All prices are in US dollars. Prices do not include shipping charges. All prices will be confirmed at time of shipment and may include pass-through tariff estimates.

      If ordering from or shipping to Australia, China, or Hong Kong, please contact your distributor.

      The WTCPEVAL Board contains all the external components necessary to evaluate and configure the WTCP5V5A Controller. The WTCP Temperature Controller is not included. Once operation is understood with the evaluation board, the WTCP can be seamlessly transferred to an OEM circuit board. Test points are provided on the evaluation board so that essential signals can be monitored during the WTCP configuration process. All identically-named testpoints (such as PVDD, PGND, etc) are electrically tied. The WTCPEVAL allows you to set Operate or Standby mode, output Enable / Disable status, and Local versus Remote operation. An LED indicates when temperature is in range. Connectors for power supply and TEC are provided. Trimpots facilitate configuration of the temperature control range, current and voltage limits, and temperature setpoint. Rotary switches allow fine-tuning of the PID feedback loop. Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.

      Size: 4.0″ x 4.5″ x 1.24″ (101.6mm x 114.3mm x 31.5mm)

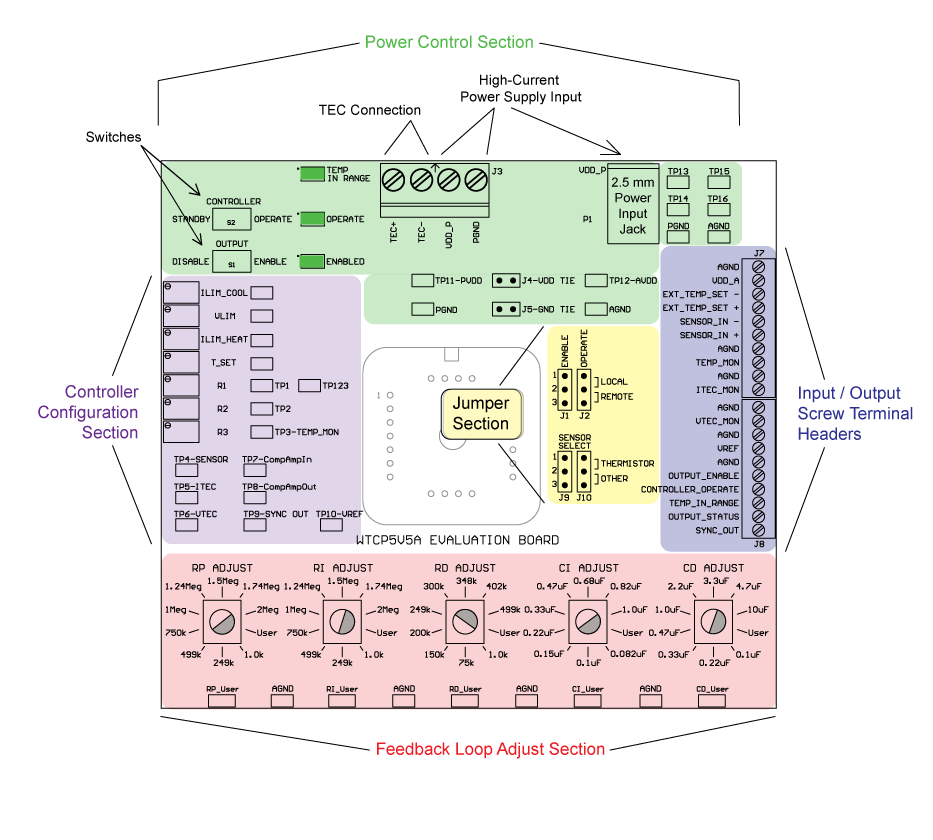

      WTCPEVAL Top View

      WTCPEVAL Top View



      DATASHEETS
      MECHANICAL / CAD DRAWINGS
      SOFTWARE
      DESIGN TOOLS
      APPLICATION & TECH NOTES
      ACCESSORIES
      KITS
      RELATED PARTS
      SKUDESCRIPTIONPRICEIMAGE
      WTCP5V5A WTCP 5 A, 5 V PWM Temperature Controller $104.00
      WTCP-OEM WTCP OEM System Integration Board for WTCP5V5A $23.00

      NOT SEEING WHAT YOU NEED?
