WTCP OEM System Integration Board for WTCP5V5A

WTCP OEM System Integration Board for WTCP5V5A

    CAN BE USED WITH

    Contact Factory for High Volume Pricing
    Price adjustments will be reflected in the cart. For availability information please contact us.

    All prices are in US dollars. Prices do not include shipping charges. All prices will be confirmed at time of shipment and may include pass-through tariff estimates.

    If ordering from or shipping to Australia, China, or Hong Kong, please contact your distributor.

    Benefits & Features:
    • Fully customizable System Integration Board
    • Compact size
    • Immediate integration into your system
    The WTCP-OEM board condenses the adjustable functions of the WTCPEVAL board into a compact bare board, perfect for system integration. Install your own components, or we will customize with a Product Variation. At 2.1″ x 2.0″, you can include a monitor/output connector, either a setpoint trimpot for a variable setpoint or a resistor pair for a fixed setpoint, resistors to set cooling and heating limits, and all the tuning parameters. NOTE: The WTCP-OEM does not include the WTCP5V5A module.  For custom components on the WTCPOEM, order a Product Variation by contacting Wavelength Electronics. Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.

    To obtain component value information for the WTCPOEM board, use the WTCPEVAL in conjunction with your application or use Wavelength’s Component Configurator.

    NOTE: The WTCPOEM does not include on-board components unless a custom Product Variation is ordered.

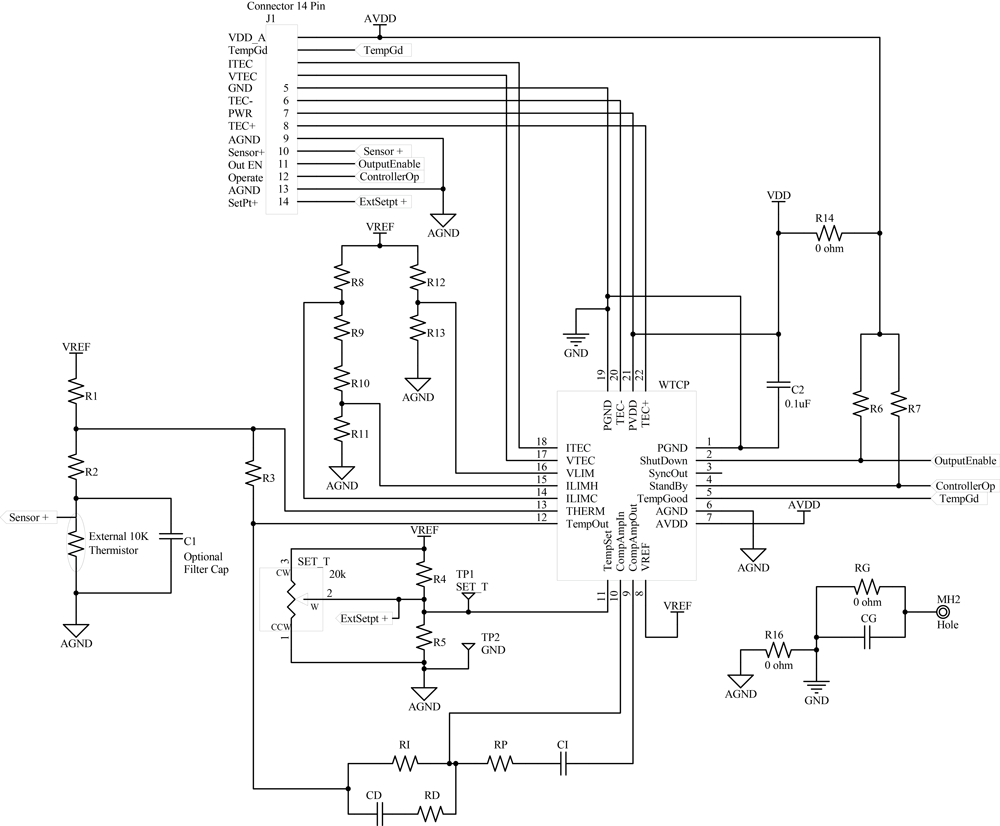

    WTCP-OEM Schematic

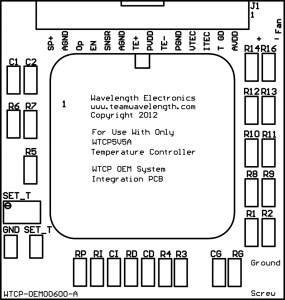

    Top View Component Locator:
    Top View Component Locator
