RELIABILITY YOU CAN TRUST

The PLD Series Laser Diode Drivers deliver the reliability and performance you expect from a Wavelength Electronics laser driver in a compact and easy-to-integrate package. Tens of thousands of PLD drivers are deployed in laser systems around the world, proving beyond doubt the reliability and stability of the design. PLD Series laser power supplies are found in particle counters, manufacturing vision systems, photovoltaic quantum efficiency testers, wavefront scanners, fiber aligners, and laser diode LIV testers. It is CE certified. A PDF version of the Declaration of Conformance is available.

WIDE RANGE OF DRIVE CURRENT RANGES

So you can optimize your total system performance, Wavelength offers the PLD Series drivers over a range of output currents. Choose the model that best suits your needs, or call Wavelength if you need assistance deciding: PLD Series – Output ranges of 200 mA, 500 mA, 1.25 A, 5 A, and 6.5 A; circuit-board mounted package PLD-CH Series – from 5 A, 10 A, and 12.5 A output current; chassis-mount package These drivers are not recommended for low noise applications. See the LD2.5CHA or LD5CHA for lower noise laser drivers.

DESIGNED FOR EASY INTEGRATION

The PLD drivers operate from a single 5 V power supply. To accommodate high compliance lasers, or multiple stacked lasers, the PLD laser diode drivers allow the laser to be driven from a separate power supply up to 30 V. The available PLDEVALPCB evaluation circuit board reduces your development costs and allows you to focus on designing the features that will set your system apart. Remote computer control is available using the USBKIT, which also allows graphing and datalogging.

PRACTICAL FEATURES, ROBUST DESIGN

Thoughtfully designed features provide valuable benefits and protect the laser against operational anomalies:

• Remote enable can be tied to a safety interlock and a temperature controller, such as Wavelength’s PTC Series.
• Built-in constant current and constant power operating modes minimize your electronics overhead.

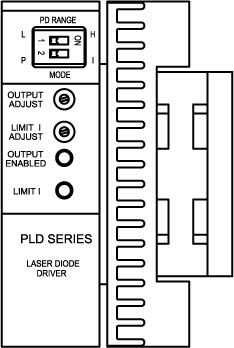

• On-board controls mean quick and easy driver setup.
• Analog setpoint input gives you remote external control of the laser current and modulation.
• Latching current limit safely switches off output if current limit is reached.

VALUABLE LASER SAFETY FEATURES

Built-in safety features make your product more robust to real world operating conditions: latching current limit, slow start circuit, and a mechanical shorting relay protect the laser and ensure long-term system reliability. Long-term reliability means better up-time, fewer service calls, and more customers who are satisfied with your products.

SERVICE AND SUPPORT

Download the brochure to view a more detailed specification chart, and then call Wavelength’s sales engineers so we can help you choose the right driver for your application. Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.
