QCL Test Load for QCL2000

  • 1 - 5 each
    $100.00
  • 6+ each
    $100.00
    $98.00

QCL Test Load for QCL2000

    • 1 - 5 each
      $100.00
    • 6+ each
      $100.00
      $98.00

    QCL Test Load for QCL2000

      • 1 - 5 each
        $100.00
      • 6+ each
        $100.00
        $98.00
      • 1 - 5 each
        $100.00
      • 6+ each
        $100.00
        $98.00

      Contact Factory for High Volume Pricing
      Price adjustments will be reflected in the cart. For availability information please contact us.

      All prices are in US dollars. Prices do not include shipping charges. All prices will be confirmed at time of shipment and may include pass-through tariff estimates.

      If ordering from or shipping to Australia, China, or Hong Kong, please contact your distributor.

      Quantum Cascade Lasers are typically very expensive. We recommend that you use a test load for initial setup of the QCL-LAB and QCL-OEM families of low noise Quantum Cascade Laser drivers. The QCLTL-2000 can be used with the QCL2000 LAB, QCL2000 OEM, or QCL2000 OEM(+) drivers. A 5 Ω, 50 W resistor is mounted to a heatsink and coupled to a BNC connector. A BNC T-connector is also included. The test load can be connected to the QCL driver using the BNC to SMA cable 55-110014, sold separately. Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.

      5 Ω, 50 W, TO220 resistor

      Heatsink size: 4″ x 6″ x 1.125″ (102 x 152 x 29 mm)
      Material: Black anodized aluminum
      Natural Convection Thermal Resistance: 1.57°C / W

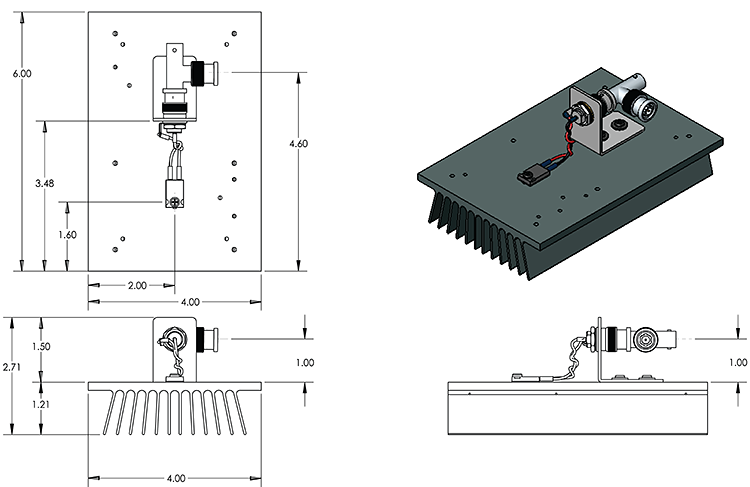

      QCLTL-2000 Dimensions

      QCLTL 2000 Dimensions
