DESCRIPTION
The DIA filter provides low ODs in the visible red for alignment. It is suited for scientific and alignment applications.
SPECIFICATIONS
Lens Color: Blue
Wavelength Type: Visible
Application: Scientific, Alignment
VLT: 39%
CE Certified: Yes
Wavelength (nm) / OD:
190-380 / 5+
630-700 / 1.5+
LB Rating:
180-315 D LB6 + R LB4
>315-395 DR LB4
0.01W 2*10E-6J 605-642 RB1
0.1W 2*10E-5J 648-695 RB2 S
Filter Material: Polymer

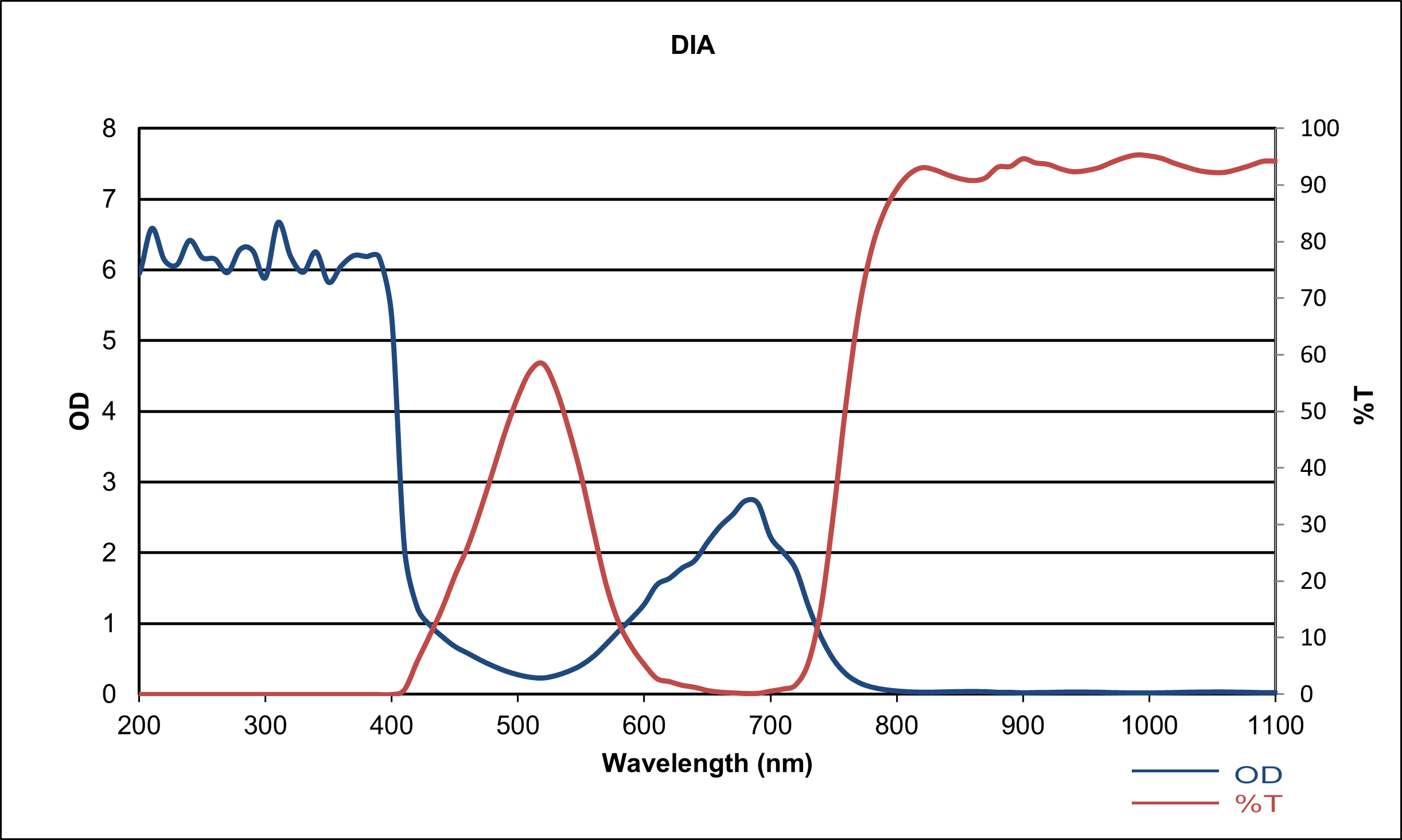

Performance Specifications:

Disclaimer: Filter characteristic data points are nominally represented here solely for informational purposes. We guarantee only those specifications, including Optical Densities, CE ratings and VLT, that are imprinted on the eye protectors and listed on filter data sheets and web pages.
Filter Image:
