CATEGORIES
Laboratory Series Single Unit Instrument Rack Mount Kit
CAN BE USED WITH
- QCL500 Laboratory Series 500 mA QCL Driver Instrument
- QCL1000 Laboratory Series firmware version 1.61
- QCL1500 Laboratory Series firmware version 1.61
- QCL2000 Laboratory Series firmware version 1.61
- Null
- TC10 LAB Series 10 A Temperature Control Instrument
- TC15 LAB Series 15 A Temperature Control Instrument
1 - 5 each
$220.00
-
1 - 5 each$220.00
-
6+ each
$220.00$216.00
Contact Factory for High Volume Pricing
Price adjustments will be reflected in the cart. For availability information please contact us.
All prices are in US dollars. Prices do not include shipping charges. All prices will be confirmed at time of shipment and may include pass-through tariff estimates.
If ordering from or shipping to Australia, China, or Hong Kong, please contact your distributor.
One QCL LAB instrument, which has a 2 U height, can be mounted on either the left or right side of a standard 19″ rack using the Single Rack Mount Kit.
The rack mount kit provides a sturdy and economical way to attach your instrument to a standard 19″ rack and is specifically made for the QCL LAB Series of instruments. A rack mount kit for two instruments is also available.
Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.
Dimensions:
Instrument: 17.7″ x 8.7″ x 3.5″ (450 x 222 x 88 mm)
Material: Anodized aluminum

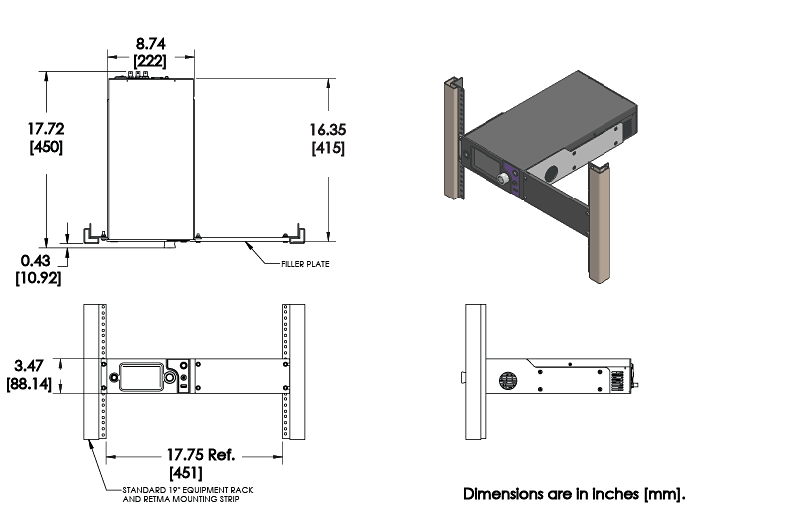

Left Mount Instrument with Filler Plate:

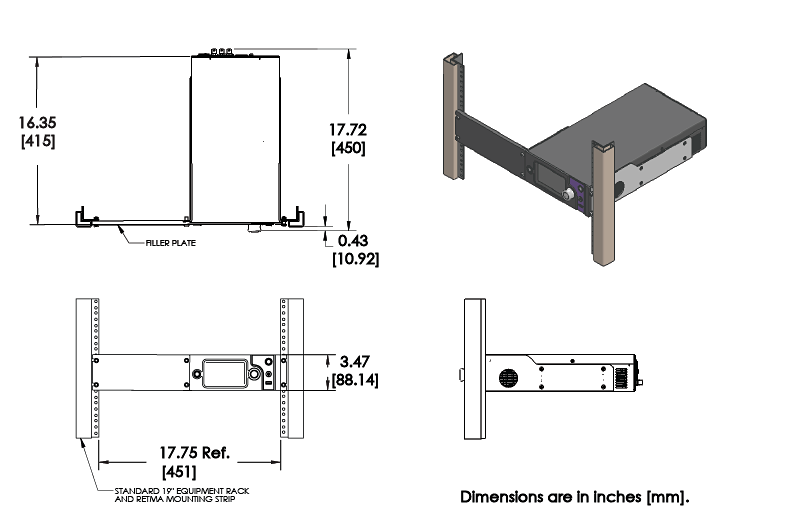

Right Mount Instrument with Filler Plate:
DATASHEETS
RELATED PARTS
| SKU | DESCRIPTION | PRICE | IMAGE |
| QCL500 LAB | QCL500 Laboratory Series 500 mA QCL Driver Instrument |
$3,666.00 You save (%) |
 |
| QCL1000 LAB-1.61 | QCL1000 Laboratory Series firmware version 1.61 | $3,648.00 |  |
| QCL1500 LAB-1.61 | QCL1500 Laboratory Series firmware version 1.61 | $3,778.00 |  |
| QCL2000 LAB-1.61 | QCL2000 Laboratory Series firmware version 1.61 | $3,916.00 |  |
| Null | Null | Null | |
| TC10 LAB | TC10 LAB Series 10 A Temperature Control Instrument |
$3,999.00 You save (%) |
 |
| TC15 LAB | TC15 LAB Series 15 A Temperature Control Instrument |
$4,779.00 You save (%) |
 |
