The HTSK-BRKT heatsink bracket offers a simple solution to free up space on your optical table and improve the performance of heatsinks. The heatsink bracket is compatible with both Wavelength Multi-Heatsinks, the MULTI-HTSK and the MULTI-HTSK-HI. These heatsinks are compatible with Wavelength chassis-mounted temperature controllers and laser drivers as shown in the table.

MODULE	HTSK-BRKT Compatible with MULTI-HTSK or MULTI-HTSK-HI
PLDxK-CH Series PLD5K-CH, PLD10K-CH, PLD12.5K-CH	Y
LDTCxx20 Series LDTC0520, LDTC1020	Y
PTCxK-CH Series PTC2.5K-CH, PTC5K-CH, PTC10K-CH, PTC10K-SL	Y
MPL Series MPL250, MPL500, MPL2500, MPL7500	N
MPT Series MPT2500, MPT5000, MPT10000	N

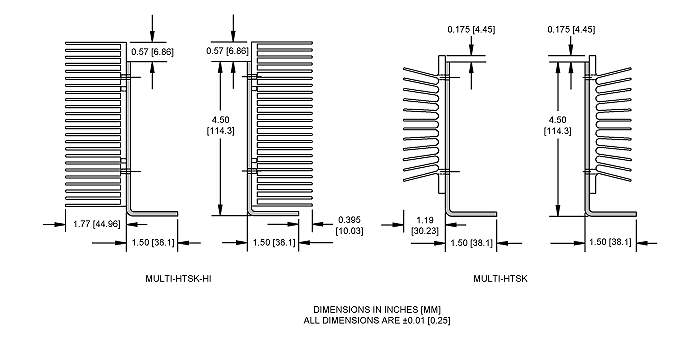

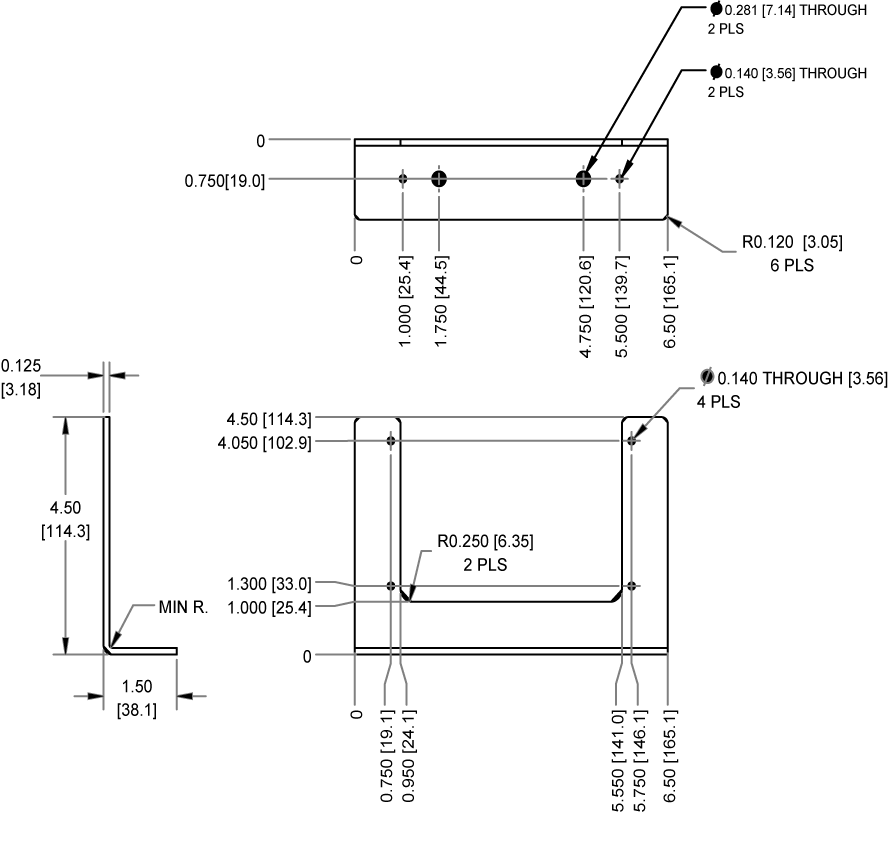

The bracket fits around the module, and the module can be installed without disassembling the bracket assembly. [NOTE: module and heatsink are not included with bracket.] The bracket mounts the heatsink in a vertical position, freeing space on your optical table. Convection is enhanced with the heatsink mounted vertically, so your Wavelength control module runs cooler at high powers. It’s also a lot simpler to force additional airflow over the heatsink with a spare fan so you can use the heatsink to its full-rated capacity. Mounting holes are spaced and drilled to match optical table tops, and additional holes are provided in case you are mounting the bracket to a different surface. The heatsink bracket is compact, economical, and provides valuable benefits that will help streamline your optical table and lab bench setups. Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.
